Performing a walk test

A walk test allows you to check the reception quality of your radio links within the operating environment.

The automatically generated data is used to provide an overview of the frequency behavior with the simulated devices and their configuration under the intended conditions. The result is represented as plain data in a .json file. The implementation of a graphical representation of the result is in planning.

You can specify the measurement interval of the walk test in seconds:

1
2
3
4
5
10
20
30

If the total data rate is too high, individual values are omitted.

To perform a walk test:

Switch on the transmitter and the receiver of the radio link you want to check.
In addition, switch on all other devices that you want to use in the operating environment.

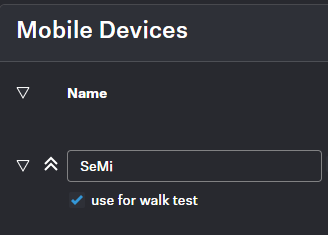

Navigate to Configuration > Mobile Devices and select the checkbox use for walk test for the device to be tested.
Navigate to Configuration > Base Station, select the measuring interval for the walk test and click on Start.
The walk test has been started.
Walk the operating environment with the mobile device.
Click on Stop as soon as the walk test has been performed.
The results of the walk test are automatically downloaded locally to your computer as a .json file.

The walk test has been performed successfully.
