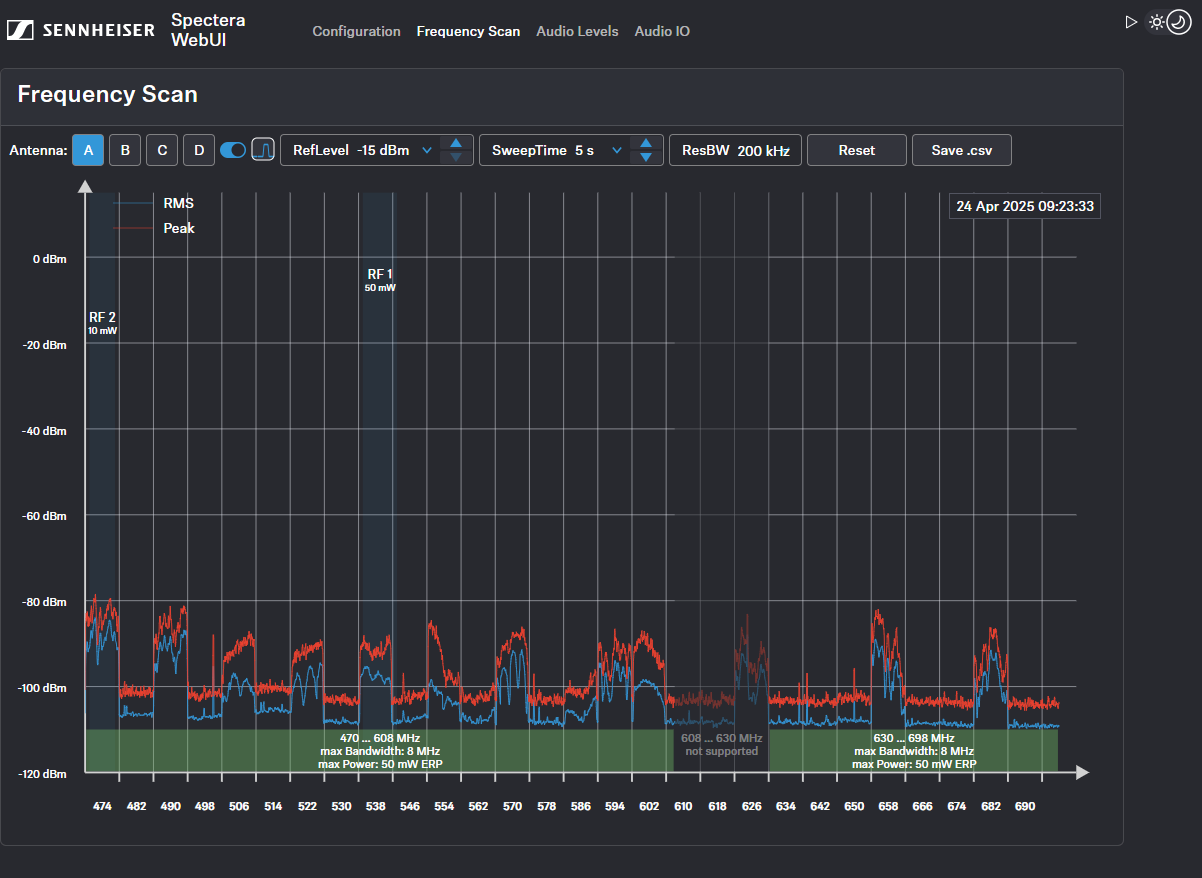

Frequency Scan

You can use an RF scan to examine the current frequency situation of your connected antenna.

Make sure that no antenna is activated!

You can monitor and control the following settings in the Frequency Scan menu:

Selecting the connected antenna to the Base Station A-D
Setting the RefLevel (reference level for frequency scan)
Setting the Sweep time for frequency scan between 2s (fast update rate) and 60s (slow update rate)
Setting the resolution bandwidth
Resetting the peak trace
Saving all settings to a .csv file
