Base Station

Here, you can check the basic settings of the Base Station and easily perform tasks like firmware updates, walk tests, or restoring it to factory settings.

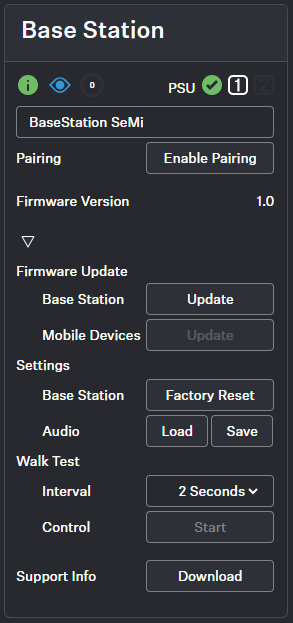

General

Device State Color
Identify Button (see Identifying Base Station)
Indication for pending actions
Connection status and number of connected power supply units
Name of your Base Station (see Changing device name)

Enable Pairing

Triggers the Pairing function of the Base Station for 300 sec. (see Pairing/unpairing mobile devices)

Firmware Update

Base Station
- Update service for the Base Station (see Updating firmware (Base Station))
Mobile Devices
- Update service for mobile devices (see Updating firmware (mobile devices))

Settings

Base Station
- Factory Reset - resets the Base Station to the factory defaults (see Resetting the Base Station)
Audio
- Saving / loading audio settings as .json file (Saving/Loading audio settings)

Walk Test

Interval: interval of the walk test (see Performing a walk test)
Control: Starting/Stopping the walk test

Download Support Info

Downloads archived support info

The automatically generated file contains basic information about the product and the last saved product configuration before a possible issue. Ideally, this file should always be saved as a backup and sent to the support team in the event of a support case.
