Displays on the SK 6000 bodypack transmitter display panel

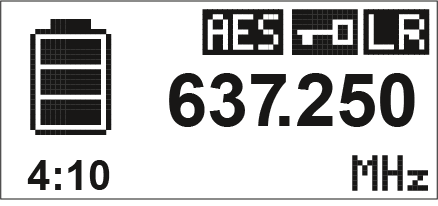

You can view the following information on the transmitter display.

Remaining battery life

Shows the remaining battery life and the transmitter operating time.

The time is displayed only if the BA 61 rechargeable battery is used.

For normal batteries, only the charge level of the batteries is displayed without time information.

For more information about rechargeable batteries and batteries, see Rechargeable batteries and battery compartments.

Frequency

Shows the set frequency.

Alternatively, the name of the radio link can also be displayed here.

See Operating the menu of the SK 6000 bodypack transmitter

Encryption

The radio link between the receiver and transmitter is secured with AES 256 encryption.

The encryption can be set only on the receiver, not on the transmitter.

See Encrypting the radio link

Lock-off function

The lock-off is activated on the transmitter.

See Operating the menu of the SK 6000 bodypack transmitter

Transmission mode (LR/LD)

The standard transmission mode of the transmitters in the Digital 6000 series is Long Range mode (LR). As a result, the transmitters in the Digital 6000 series are compatible with EM 9046 and EK 6042 if they are operated in Long Range mode.

If required, Link Density mode (LD) can be activated in the menu of the EM 6000 (see System -> Transmission Mode menu item) in order to accommodate even more channels in the available frequency spectrum.

For more detailed information about Link Density mode, see Link Density Mode.
