System -> Info menu item

This menu item shows the MAC address of the EM 6000 and the current version of the firmware.

To display information in the System -> Info menu item:

Turn the jog dial in the System menu item until the Info menu item appears in the selection frame.
Press the jog dial to open the menu.

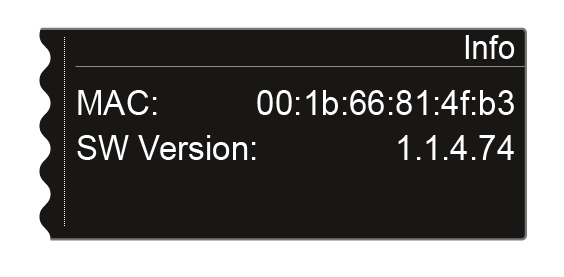

The following view is shown on the display.
