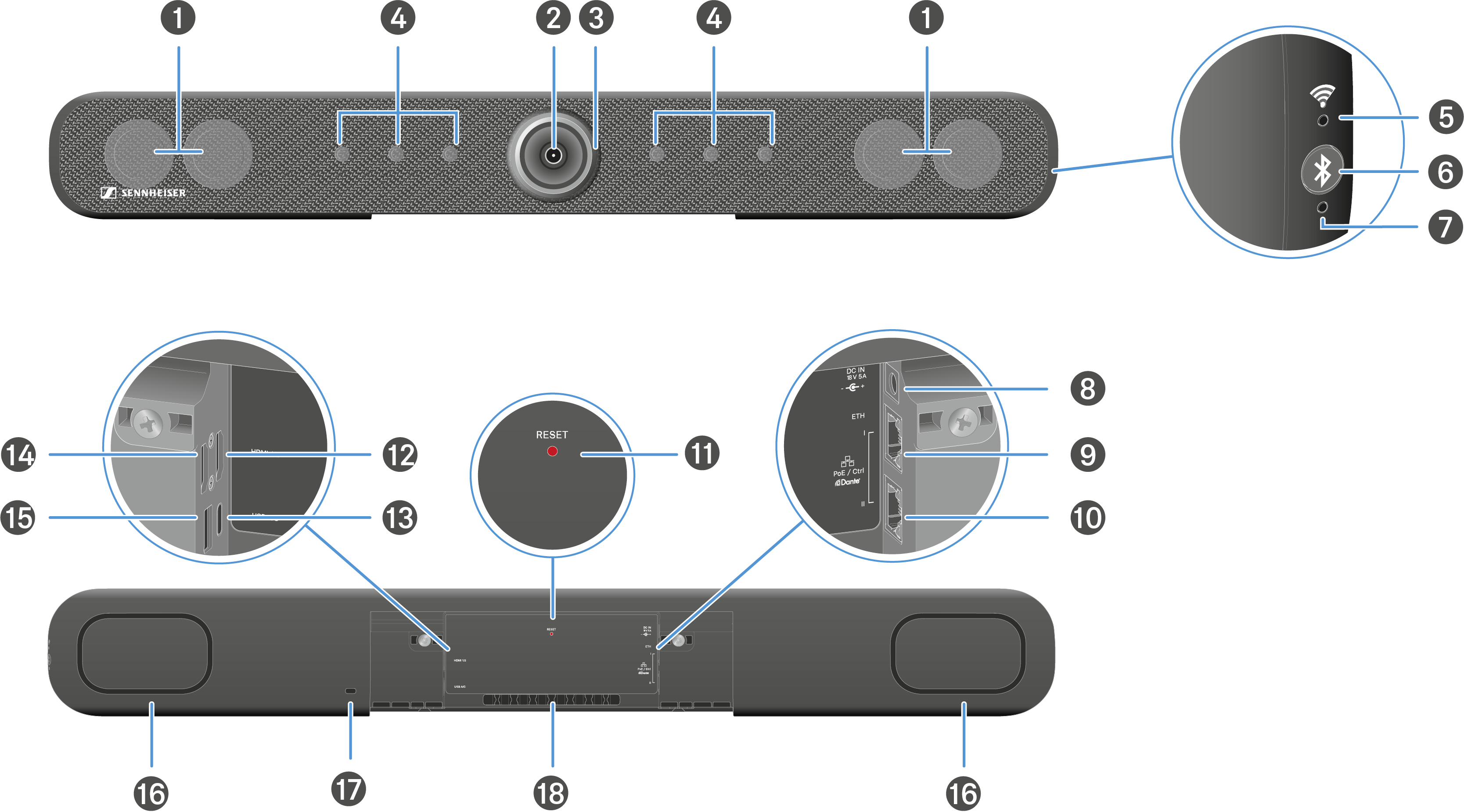

Product overview - TC Bar M


1	Stereo speakers
2	Camera See Camera settings
3	LED ring See Camera settings
4	Beamforming microphones See Microphone settings
5	Wi-Fi LED
6	Bluetooth® pairing initialization See Activating Bluetooth®
7	Bluetooth® LED See Activating Bluetooth®
8	DC IN socket See Connecting the TC Bar to the power supply system and starting it
9	LAN connection socket 1 RJ45 Ethernet/control See Network configuration
10	LAN connection socket 2 RJ45 Ethernet/control See Network configuration
11	Reset button (factory settings) See Resetting the TC Bar to factory settings
12	Connection socket - HDMI® output See Connecting the TC Bar to an external screen (optional)
13	Connection socket - USB-C® input See Connecting the TC Bar to a device (stand-alone solution)
14	Connection socket - HDMI® output 2 See Connecting the TC Bar to an external screen (optional)
15	Connection socket - USB-A input See Connecting an external PTZ camera
16	Passive radiator
17	Kensington lock
18	Cable sheath for connection cable
