Product overview - TC Bar S

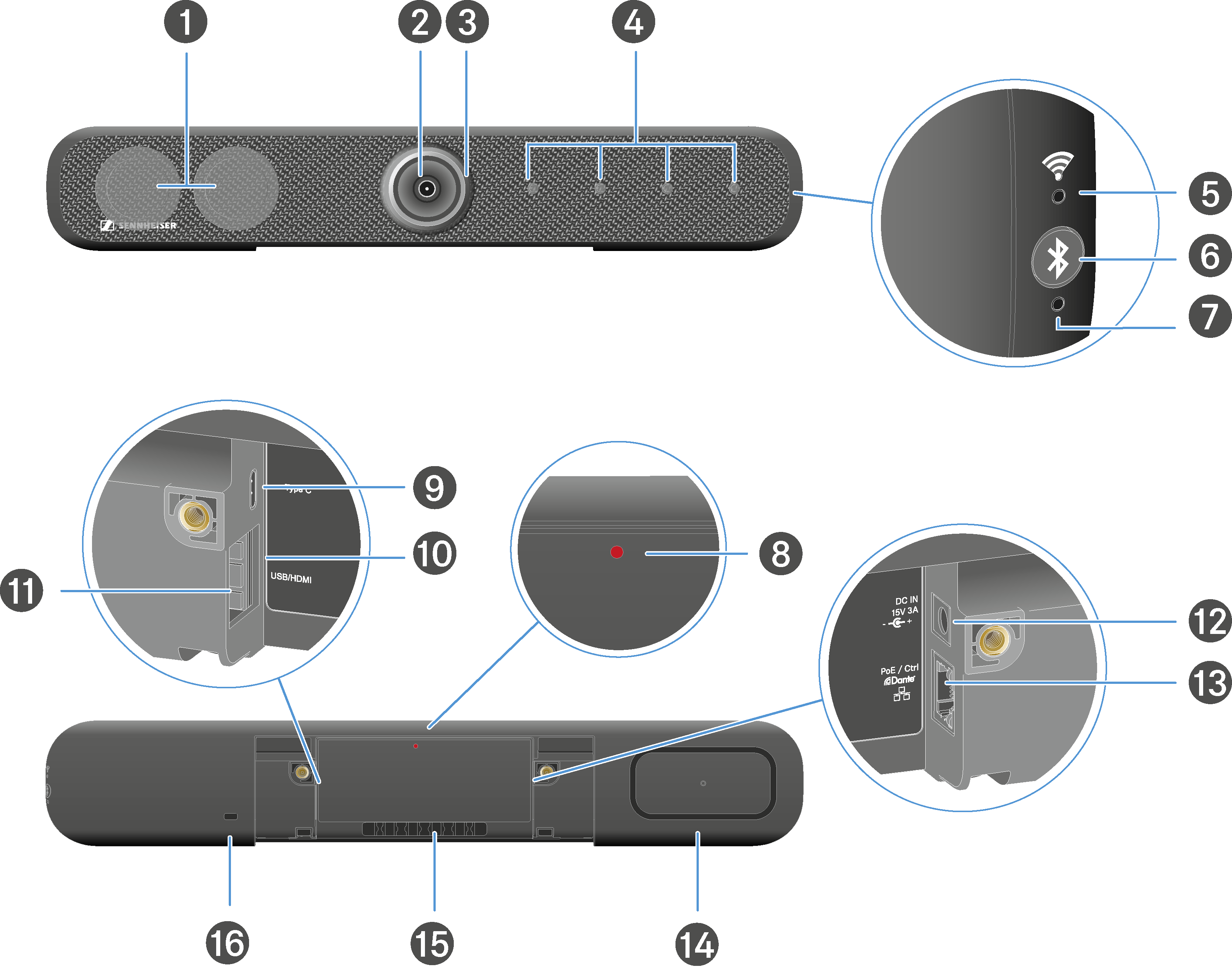

1	Stereo speakers
2	Camera See Camera settings
3	LED ring See Camera settings
4	Beamforming microphones See Microphone settings
5	Wi-Fi LED
6	Bluetooth® pairing initialization See Activating Bluetooth®
7	Bluetooth® LED See Activating Bluetooth®
8	Reset button (factory settings) See Resetting the TC Bar to factory settings
9	Connection socket - USB-C® input See Connecting the TC Bar to a device (stand-alone solution)
10	Connection socket - HDMI® output See Connecting the TC Bar to an external screen (optional)
11	Connection socket - USB-A input See Connecting an external PTZ camera
12	DC IN socket See Connecting the TC Bar to the power supply system and starting it
13	LAN connection socket RJ45 (PoE+ (PD)) See Network configuration
14	Passive radiator
15	Cable sheath for connection cable
16	Kensington lock
