Mobile devices

Mobile devices are bodypack transmitters and/or receivers, which are assigned to a Base Station.

On a mobile device, both incoming in-ear signals and outgoing microphone signals can be sent with one device. To do this, the audio link mode must be set.
Mobile device cards cannot be re-ordered. Please add devices in the desired order. Newly added devices are always added at last position to the right.

Summarized view



Depending on the configuration, a mobile device can provide the following summarized device information:

  • the device state color and the name of the device
  • the current warnings about the status of the device
  • the connected RF channels and Base Station
  • the battery status
  • the IEF /IFB input information:
    • LQI Link Quality Input (LQI)
    • I1 Input channel number (e. g. "I 1" for mono or "I 2" and "I 3" for stereo)
  • MIC/LINE the output information
  • the current volume status

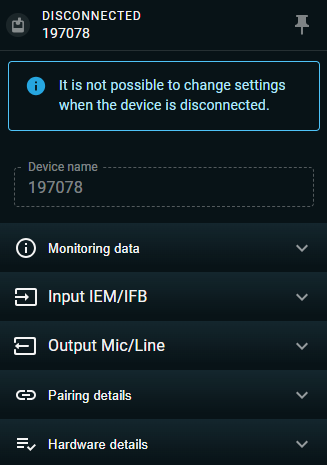

Detail view



By clicking on the card of the mobile device, a details page appears on the right-hand side of the navigation menu. The page shows detailed information about the device and allows you to edit important settings for ongoing operation:
  • Name and status of the devices
  • Monitoring data
    • Monitoring the readiness state and the battery status of your mobile device
  • Input IEM / IFB
    • Changing the balance
    • Changing the headphone volume
    • Changing the headphone volume limiter
    • Monitoring the selected audio link mode
    • Monitoring the configured audio channel
    • Changing the routing configuration with EDIT ROUTES
  • Output Mic/Line
    • Changing the MIC/LINE SELECTION
    • Changing the PREAMP GAIN for the microphone output
    • Changing the low cut value in order to minimize the wind noise
    • Monitoring the selected audio link mode
    • Monitoring the configured audio channel
  • Pairing details
    • Details about the connected Base Station
    • Details about the active RF channel and
    • Details about the capacity utilization of the entire RF bandwidth
  • Hardware details
    • Product name
    • Type
    • Serial Number
    • FCC Number
    • Firmware version
    • If a firmware update is available, you can start the update here (Updating firmware (Base Station))
