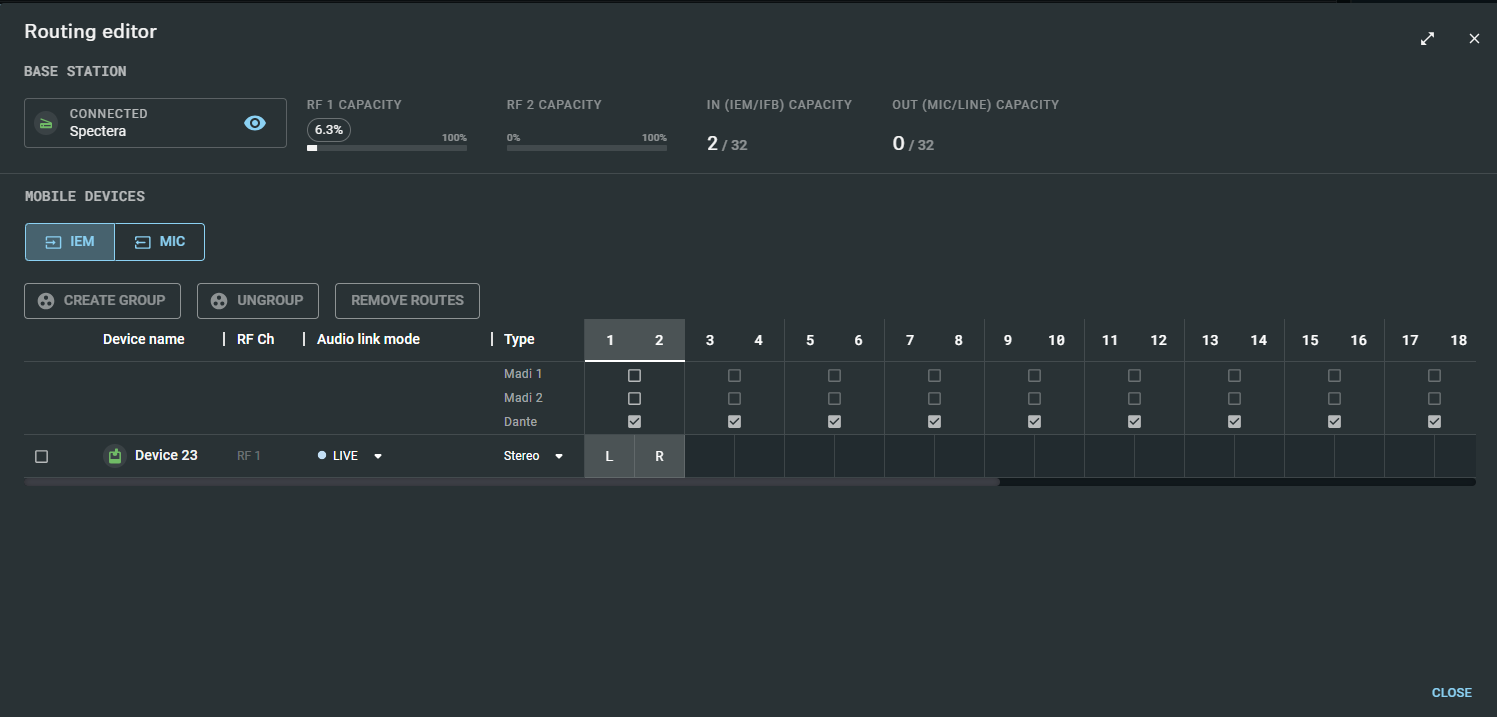

Routing Editor

The editor serves as a basic configurator for mobile devices and also provides an overview of all connected devices with their total capacity utilization within an RF spectrum.

The editor can be used to:

Select connected Base Stations and show up the configured RF channels
Assign RF channels to mobile devices;
Configure audio link modes for mobile devices;
Configure audio types for mobile devices
Assign up to 32 audio links for IEM/IFB input and MIC output

Base Station

Summarized view of the selected base station with the configured channels and inputs/outputs.

Mobile devices

Selection and display of a mobile device by signal type (IEM or MIC).

Groups

Possibility to group devices and remove groups or the defined routes.

Routing Settings

The customized configuration of individual paired mobile devices.
Device name
- Display of all paired mobile devices.
RF channel
- Display of the channel assignment of the individual mobile device.
Audio link mode
- Selection of preset audio link modes with indication of their capacity impact:
  - Not set
  - LIVE Link Density
  - LIVE
  - LIVE Low Latency
  - LIVE Ultra Low Latency
Mode Type
- Type of the available mode (stereo / mono).
Audio Links
- Assignment of individual links for IEM/MIC, with specification of the existing sound type (stereo/mono).
