Base Station

The Base Station is the central hardware for managing and monitoring all compatible Spectera products.

The Base Station is used to connect, configure and monitor antennas and mobile devices all in one.

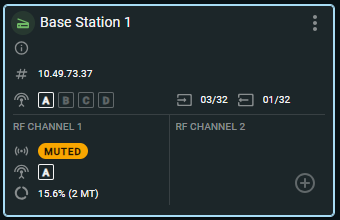

Summarized view

Depending on the configuration, a Base Station can provide the following summarized device information:

the device state color
the current warnings about the status of the device
the IP address
the connected antennas
the configured RF channels
the status of the RF channel, e. g. muted, antenna loss or antenna update
the number of routed IEF /IFB inputs
the number of routed MIC/LINE outputs
the capacity utilization of the entire RF bandwidth

Details view

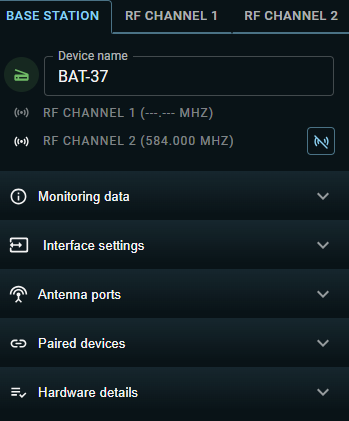

By clicking on the card of the Base Station, a details page appears on the right-hand side of the navigation menu. The page shows detailed information about the device and allows you to edit and monitor the settings for ongoing operation:

BASE STATION
- Name and status of the Base Station
  - Device State Colors
  - Identifying Base Stations
- Status of the RF channel
  - Muting/unmuting RF signals
Device information:
- Changing device name
- Updating firmware (Base Station)
Monitoring data
- Here you can monitor the hardware health-state, the configured RF channels and the number of connected power supply units
Interface settings
- Overview of all available interfaces for incoming and outgoing links and connections
Antenna ports
- Overview of all connected antennas and available antenna ports
Paired devices
- Overview of all known devices within the RF channels with its number of linked routes
Hardware details
- Detailed information of the Base Station
