Starting up and operating devices of the ew G4 series.
ASA 214 antenna splitter
Configuring multi-channel systems

User manual
Starting up and operating devices of the ew G4 series.

Configuring multi-channel systems

The following options for connecting multi-channel systems are possible:

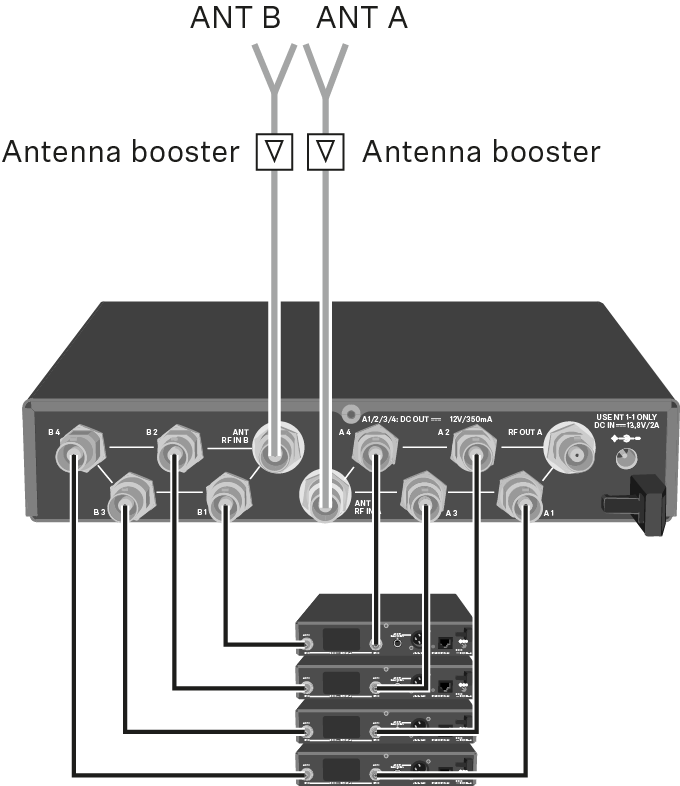

Option 1: Two antennas supply a 4-channel system

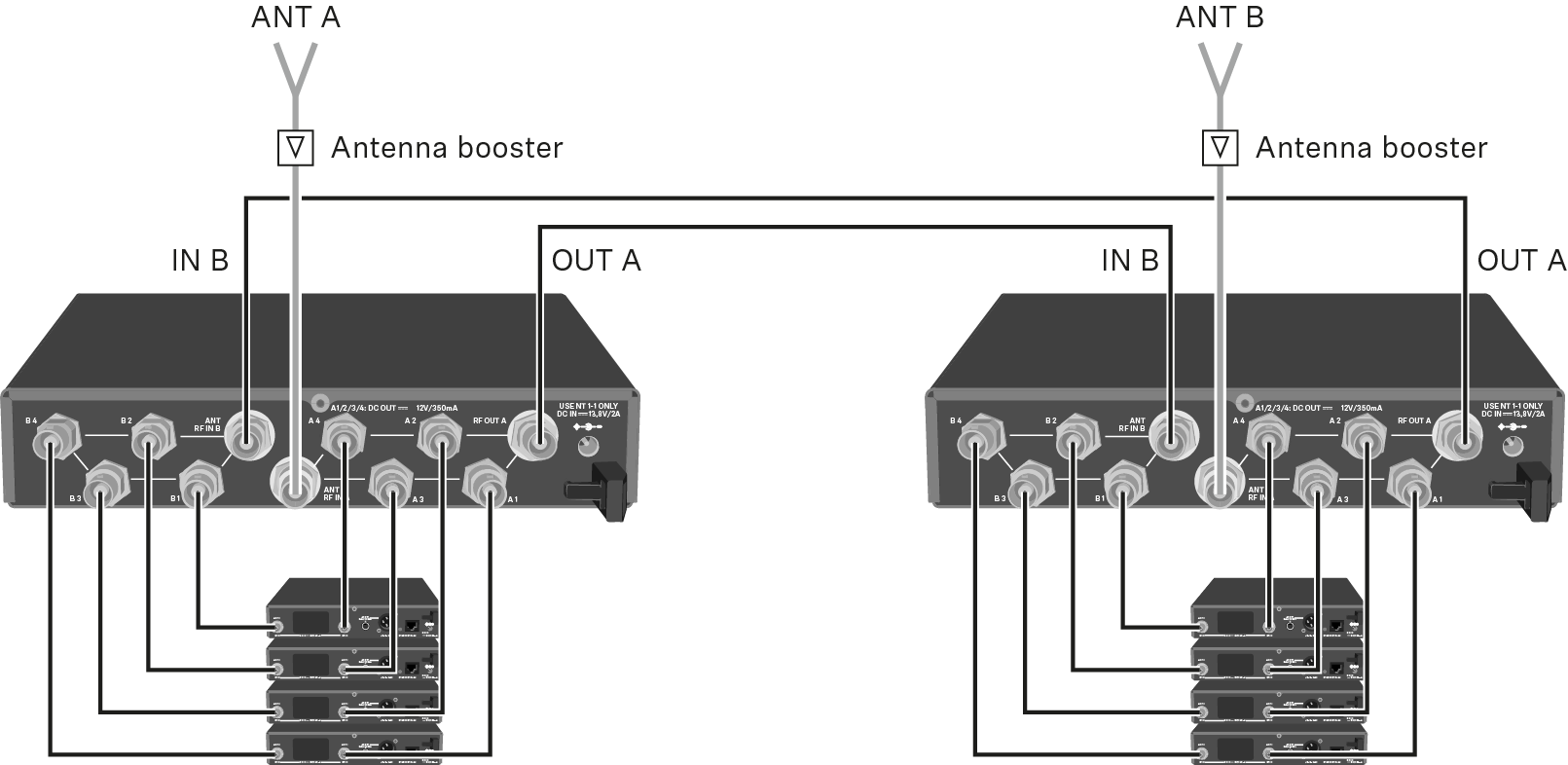

Option 2: Two 4-channel systems are interconnected

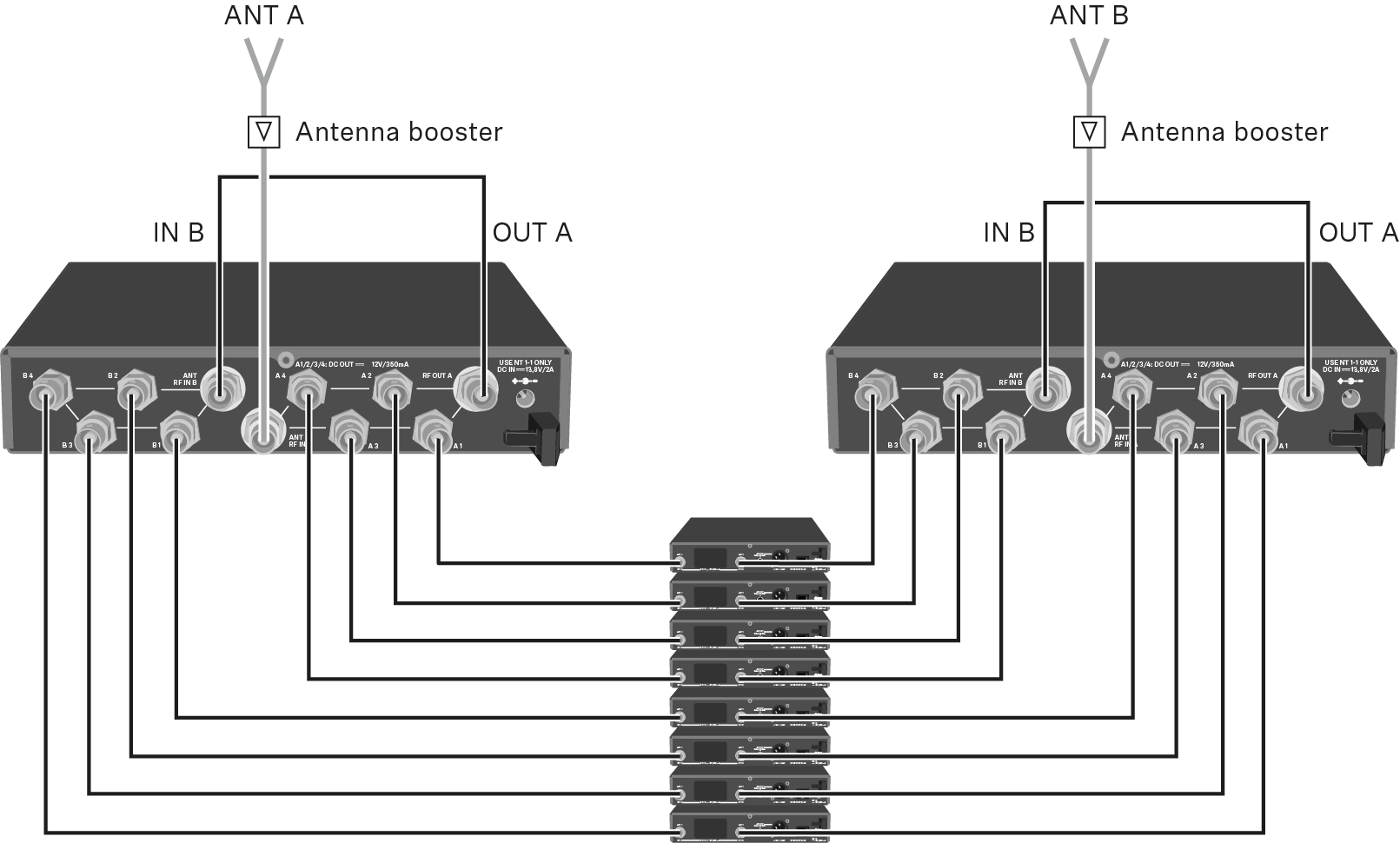

Option 3: Two antennas supply a 8-channel system

On this page

Option 1: Two antennas supply a 4-channel system
Option 2: Two 4-channel systems are interconnected
Option 3: Two antennas supply a 8-channel system
