Connecting antennas

For more information about antennas and antenna accessories, see Antennas and accessories.
In order to ensure optimal reception even in the case of poor reception conditions, we recommend using remote antennas.

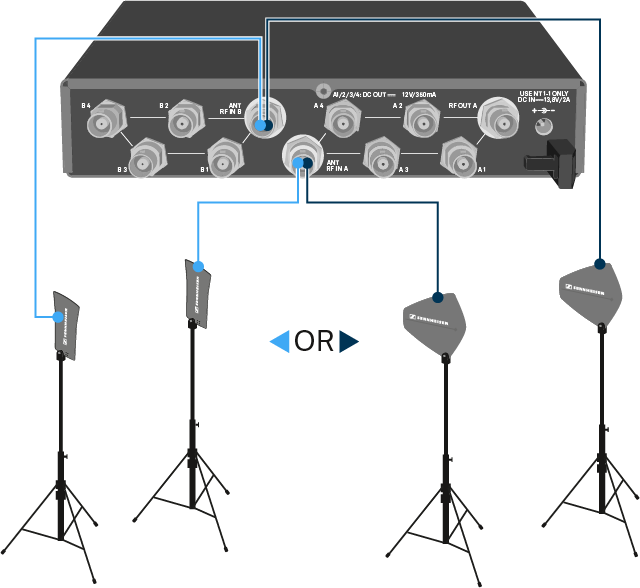

Connecting remote antennas
  1. Mount two antennas or a combination of an antenna and an antenna amplifier to the BNC sockets ANT RF IN A and ANT RF IN B.

Connecting rod antennas
  1. Mount the antennas to the BNC sockets ANT RF IN A and ANT RF IN B.
  2. Align the antennas in a V-shape in order to ensure the best possible reception.
