Product overview

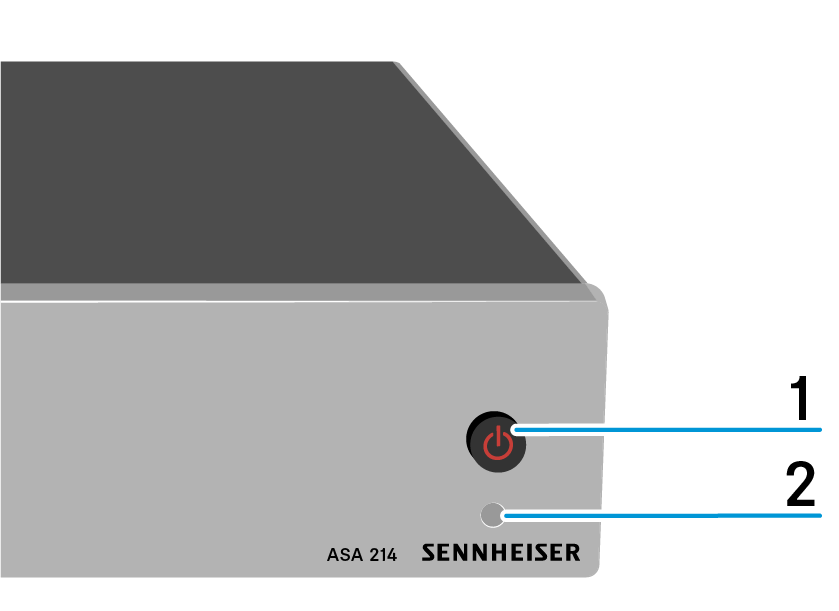

Front

1	STANDBY button see Switching the splitter on and off
2	LED: Operation indicator

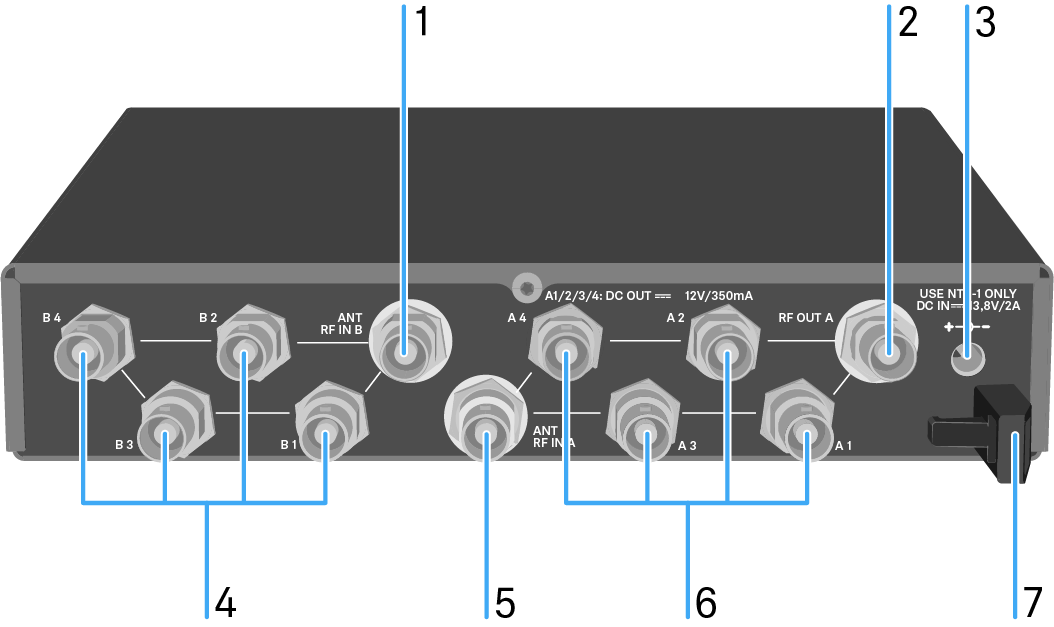

Back

1	ANT RF IN B BNC socket Antenna input of diversity branch B see Connecting antennas
2	RF OUT A BNC socket RF output only for connecting an additional ASA 214 to build an 8-channel diversity system see Configuring multi-channel systems
3	DC IN socket To connect the NT 1-1 power supply unit see Connecting/disconnecting the splitter to/from the power supply system
4	BNC sockets B1 to B4 RF outputs of diversity branch B for connection to the receiver see Connecting receivers
5	ANT RF IN A BNC socket Antenna input of diversity branch A see Connecting antennas
6	BNC sockets A1 to A4 RF outputs of diversity branch A for connection to the receiver Every one of these RF outputs can also provide voltage to a receiver. see Connecting receivers
7	Strain relief for the cable of the power supply unit see Connecting/disconnecting the splitter to/from the power supply system
