Information on antenna amplifiers and cable lengths

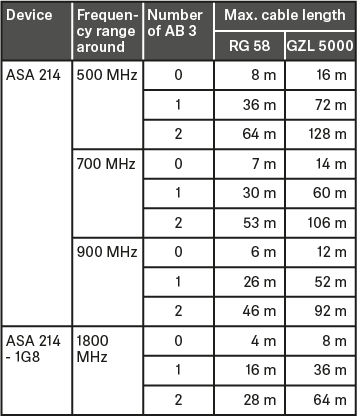

The following table shows which cable lengths require the use of the AB 3 or AB 4 antenna amplifier as well as the maximum recommended cable lengths.
Use the AB 3 for the following frequency ranges:
- K+ range: 925 - 937,5 MHz
- 1G8 range: 1785 - 1800 MHz
Use the AB 4 for the following frequency ranges:
- Aw+ range: 470 - 558 MHz
- Gw range: 558 - 626 MHz
- GBw range: 606 - 678 MHz
- Bw range: 526 - 698 MHz
- Cw range: 718 - 790 MHz
- Dw range: 790 - 865 MHz
