Connecting/disconnecting the splitter to/from the power supply system

To supply power to the ASA 214, the connected receivers and any antenna amplifiers used, you will need the NT 1-1 power supply unit.

Only use the supplied NT 1-1 power supply unit.

It is designed for your antenna splitter and ensures safe operation.

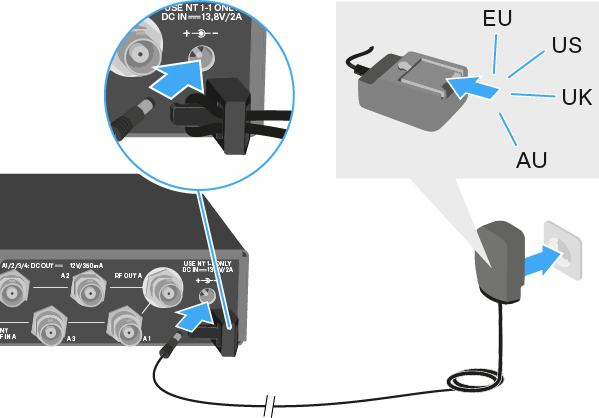

To connect the ASA 214 antenna splitter to the power supply system:
  1. Plug the hollow jack plug of the power supply unit into the DC IN socket of the antenna splitter.
  2. Pass the cable of the power supply unit through the cable grip.
  3. Slide the supplied country adapter onto the power supply unit.
  4. Plug the power supply unit into the wall socket.

To completely disconnect the ASA 214 antenna splitter from the power supply system:
  1. Unplug the power supply unit from the wall socket.
  2. Unplug the hollow jack plug of the power supply unit from the DC IN socket of the antenna splitter.
