e 914

Specifications

Transducer principle

• pre-polarised condenser microphone

Frequency response

• 20 - 20,000 Hz

Pick-up pattern

• cardoid

Sensitivity (free field, no load)

• 7 mV/Pa
• with pre-attenuation: 2.3 mV/Pa / 0.7 mV/Pa

Nominal impedance (at 1 kHz)

• 100 Ω

Min. terminating impedance

• 1 kΩ

Max. sound pressure level (at 1 kHz)

• 137/147/157 dB SPL (depending on pre-attenuation)

Equivalent noise level

• A-weighted: 24 db(A)
• CIIR-weighted: 34 dB

Pre-attenuation

• 0, -10, -20 dB

Bass filter

• linear
• roll-off 130 Hz, 6 dB/Okt
• cut-off 85 Hz, 18 dB/Okt

Phantom powering

• 48 V / 2.2 mA

Connector

• XLR-3

Dimensions

• Ø 24 x 157 mm

Weight

• 198 g

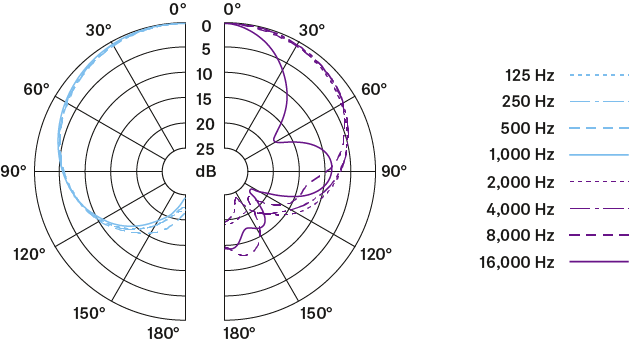

Polar pattern

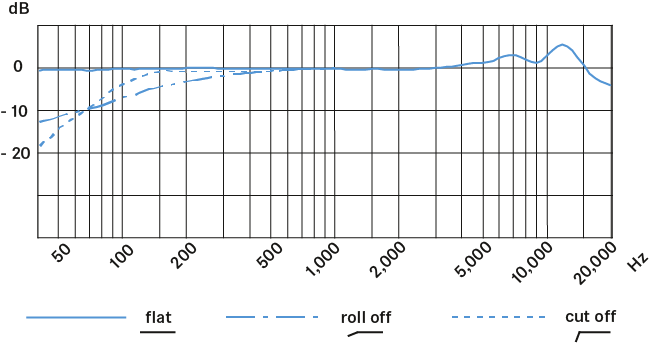

Frequency response

Connector assignment
