e 902

Specifications

Transducer principle

• dynamic

Frequency response

• 20 - 18,000 Hz

Pick-up pattern

• cardioid

Sensitivity (free field, no load)

• 0.6 mV/Pa (at 60 Hz)
• 0.2 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz)

• 350 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Dimensions

• Ø 60 x 128.5 mm

Weight

• 440 g

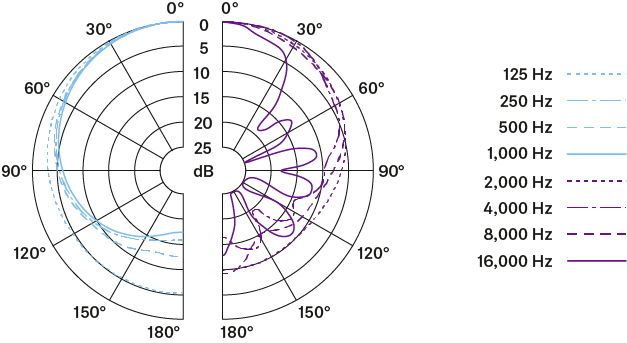

Polar pattern

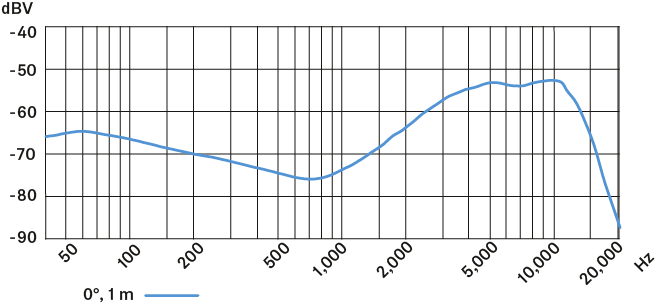

Frequency response

Connector assignment
