e 908

Specifications

Transducer principle
  • pre-polarised condenser microphone
Frequency response
  • 40 - 20,000 Hz
Pick-up pattern
  • cardioid
Sensitivity (free field, at 1 kHz)
  • 4.0 mV/Pa
Nominal impedance (at 1 kHz)
  • 100 Ω (balanced)*
Min. terminating impedance
  • 50 Ω
Max. sound pressure level
  • 147 dBSPL (k = 3%)
Equivalent noise level
  • 30 dB (A)
  • 35 dB (A)*
Phantom powering
  • 12 - 48 V*
Connector
  • e 908 B: XLR-3*
  • 3.5 mm jack
Dimensions
  • 47 x 193 mm
Weight
  • 140 g*

* with MZA 900 P (e 908 B)

e 908 B ew for direct connection to ew transmitters

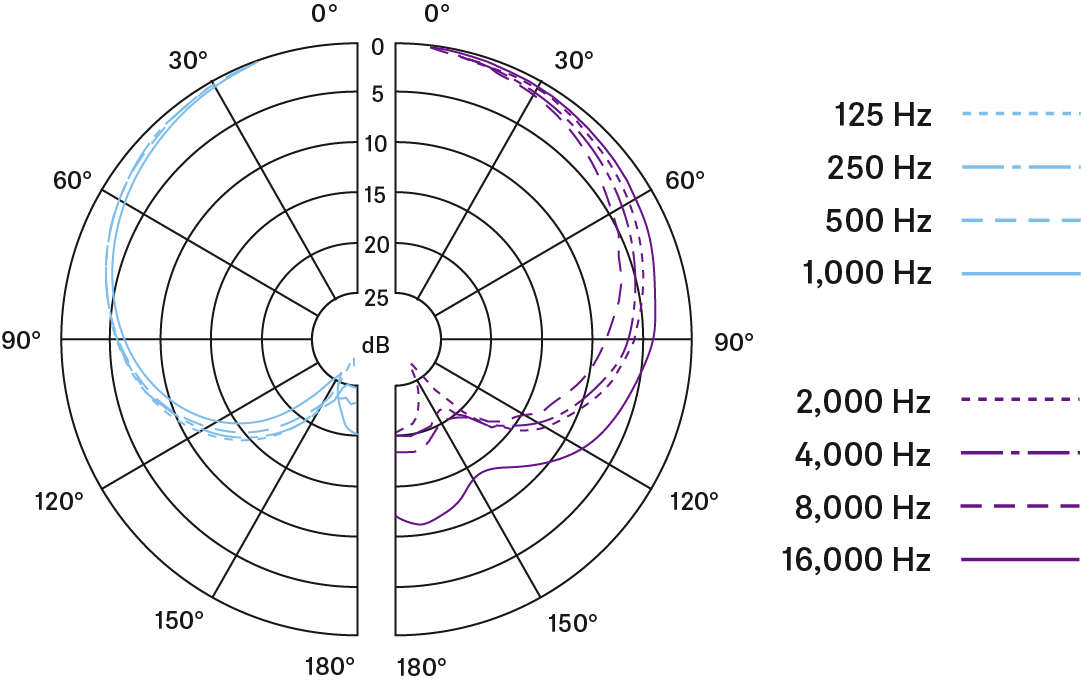

Polar pattern

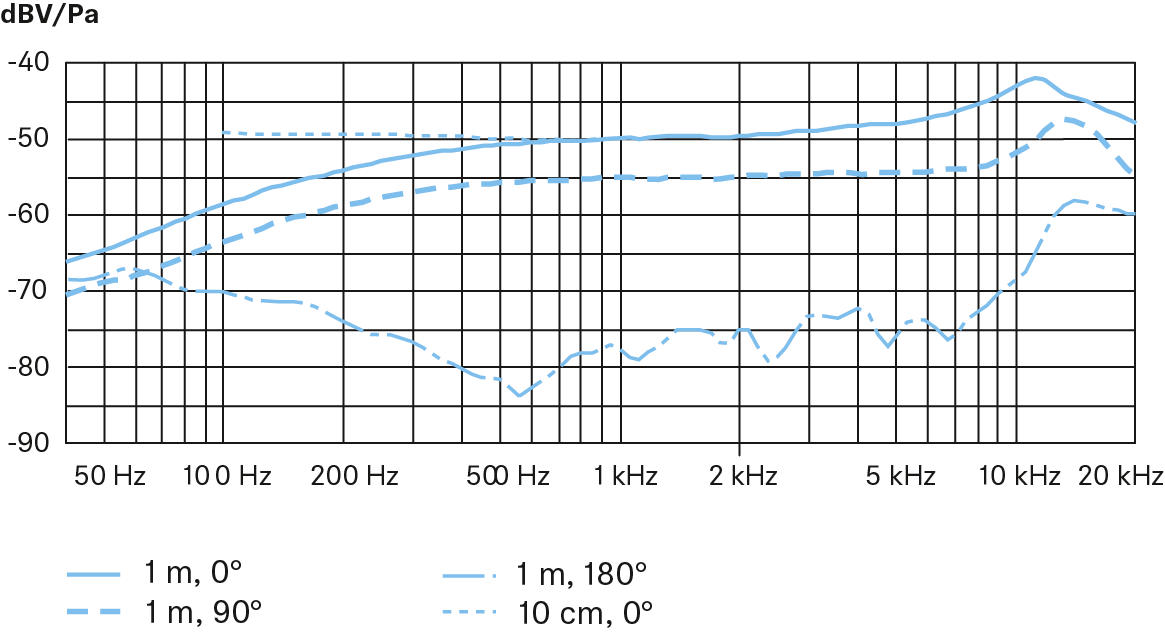

Frequency response



Connector assignment
