e 865-S

Specifications

Transducer principle

• pre-polarised condenser microphone

Frequency response

• 40 - 20,000 Hz

Pick-up pattern

• Supercardioid

Sensitivity (free field, no load)

• 3 mV/Pa

Nominal impedance (at 1 kHz)

• 200 Ω (symmetrisch)

Min. terminating impedance

• 1 kΩ

Max. sound pressure level (at 1 kHz)

• 150 dB

Phantom powering

• 12 - 48 V

Connector

• XLR-3

Temperature range

• 0 °C to +40 °C

Dimensions

• Ø 47 x 193 mm

Weight

• 311 g

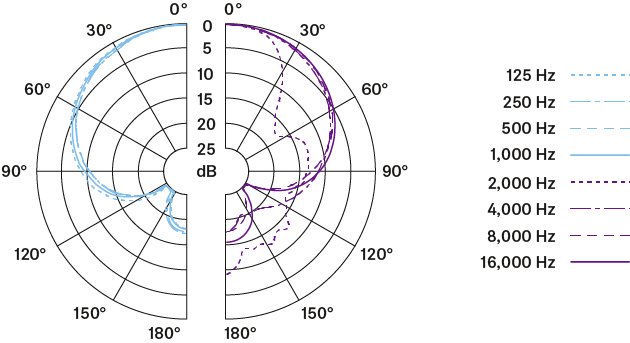

Polar pattern

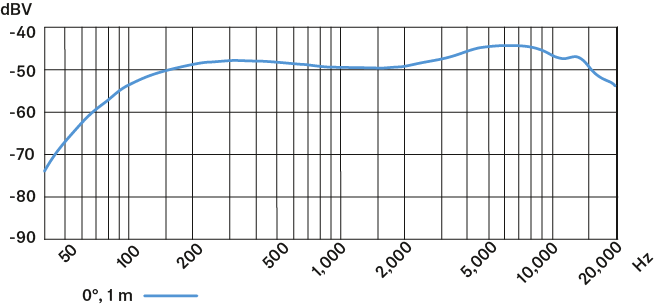

Frequency response

Connector assignment
