e 608

Specifications

Transducer principle

• dynamic

Frequency response

• 40 - 16,000 Hz

Pick-up pattern

• Supercardioid

Sensitivity (free field, no load)

• 0.8 mV/Pa

Nominal impedance (at 1 kHz)

• 250 Ω

Min. terminating impedance

• 1 kΩ

Connector

• XLR-3

Temperature range

• 0 °C to +40 °C

Dimensions

• Ø 17 x 185 mm

Weight

• 20 g

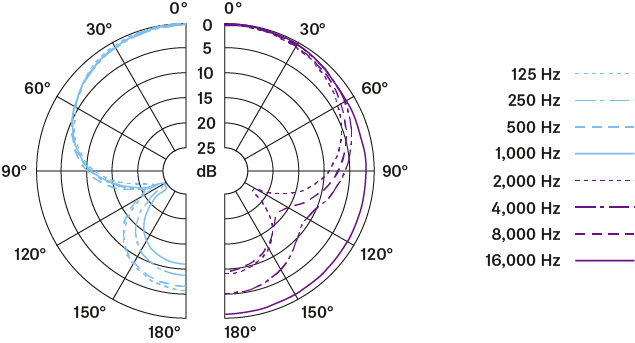

Polar pattern

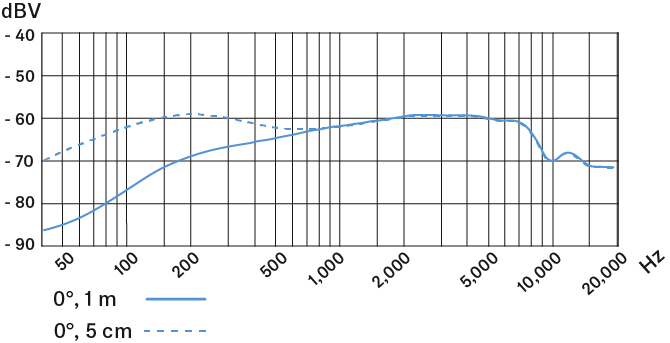

Frequency response

Connector assignment
