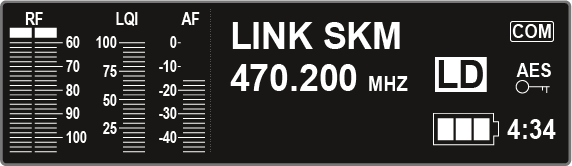

Home screen 1

The first home screen that is displayed as the initial view after the device switches on contains the following status information.

Wireless link name

You can assign the radio link name yourself in the menu.

See Name menu item.

Frequency

You can adjust the frequency in the menu.

See Frequency menu item.

Remaining battery life

Shows the remaining battery life and the transmitter operating time.

The time is displayed only if the BA 60, BA 61 and BA 62 rechargeable batteries are used. For normal batteries, only the charge level of the batteries is displayed without time information.

For more information about rechargeable batteries and batteries, see Rechargeable batteries and battery compartments.

AES 256 encryption

The AES icon is displayed if encryption has been activated for the channel.

See Encryption menu item.

Command mode

The COM icon is displayed when command mode is activated.

See Command Mode menu item.

Link Density Mode

The LD icon is displayed when Link Density mode is activated.

See System -> Transmission Mode menu item.
