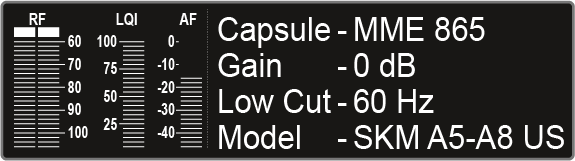

Home screen 3

The third home screen contains the following status information about the transmitter settings.

Capsule

Shows the microphone module with which the handheld transmitter is equipped

Recommended microphone modules for the handheld transmitter: Microphones and cables.

Gain

Displays the gain setting for the transmitter.

This setting can be configured in the transmitter menu. See Operating the menu of the SKM 6000 handheld transmitter, Operating the menu of the SK 6000 bodypack transmitter, or Operating the menu of the SK 6212 bodypack transmitter.

Alternatively, the gain setting can also be configured in the receiver and synchronized with the transmitter.

See Sync Settings menu item.

Low Cut

Shows the low cut filter setting for the transmitter.

This setting can be configured in the transmitter menu. See Operating the menu of the SKM 6000 handheld transmitter, Operating the menu of the SK 6000 bodypack transmitter, or Operating the menu of the SK 6212 bodypack transmitter.

Alternatively, the low cut setting can also be configured in the receiver and synchronized with the transmitter.

See Sync Settings menu item.

Model

Shows the transmitter product variant.

See SKM 6000 handheld transmitter, SK 6000 bodypack transmitter, or SK 6212 bodypack transmitter.
