Connecting a microphone / instrument

You can connect a microphone or instrument to the SEK.

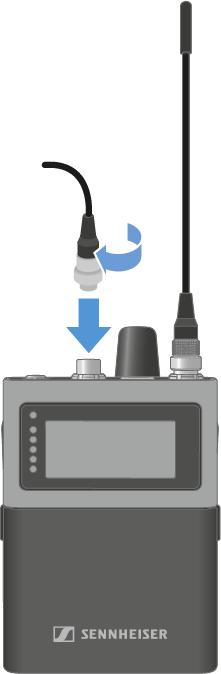

To connect a microphone to the SEK:

Use a 3-pin audio connector to connect the microphone cable to the SEK microphone / instrument input socket.
Screw the plug’s coupling ring onto the microphone / instrument input thread of the SEK.

To connect a instrument to the SEK:

Use a 3-pin audio connector to connect the instrument cable to the SEK microphone / instrument input socket.
Screw the plug’s coupling ring onto the microphone / instrument input thread of the SEK.

A microphone or instrument has been connected.
