Inserting and removing the rechargeable battery

The SEK operates only with the recharable battery BA 70 (seperate accessory).

The BA 70 can be charged in the L 70 USB, the L 6000 with LM 6070 or with the SEK in the CHG 70N-C. See Charging the rechargeable battery, Charging the rechargeable batteries in the L 6000 charger and Charging the rechargeable battery.

To insert the recharable battery into the SEK:

Press the two catches and open the battery compartment cover.
Insert the BA 70 rechargeable battery in the battery compartment.
Close the battery compartment.

The cover locks into place with an audible click.

The battery has been inserted.

About the BA 70 rechargeable battery

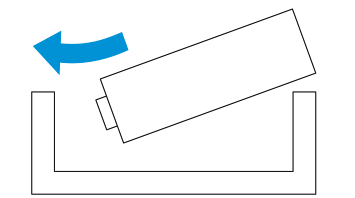

Make sure that the BA 70 rechargeable battery is inserted as follows:
