Mounting the receiver on a VESA mount
The holes in the mounting frame are positioned 100 mm apart so that the mounting frame can be mounted on any VESA 100 mount.
| CAUTION | |
|---|---|
Danger from falling objects
If you mount the receiver incorrectly on the VESA mount, the VESA mount and receiver may fall down.
This can cause personal injury and damage to property.
Follow the installation and safety instructions from the manufacturer of the VESA mount.
| |

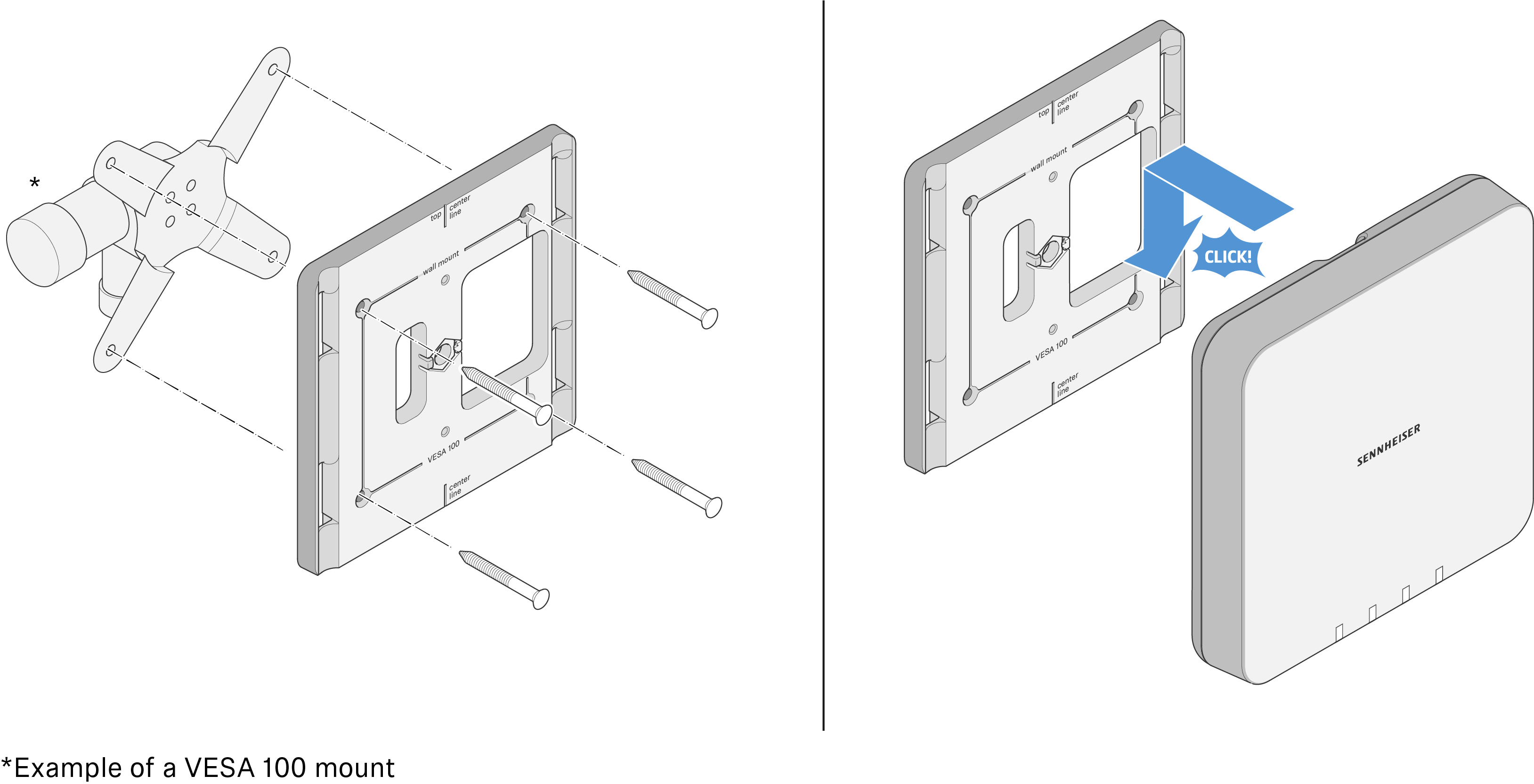

- Screw the mounting frame onto the VESA mount as shown using four suitable screws.
-
Insert the receiver into the mounting frame as shown until you hear it click into place.
