Mounting the receiver on a stand
The thread in the middle of the mounting frame is suitable for mounting on a standard microphone stand with boom arm and 3/8" thread.
| CAUTION | |
|---|---|
Danger from falling objects
If you mount the receiver improperly on the stand, the stand and receiver may tip over. This can cause personal injury and damage to property.
Use a stand that is designed for a central load of 5 kg.
Adjust the length of the boom arm as short as possible, as shown in the figure.
Set the height of the stand to a maximum of 2 meters.
Make sure that the total weight of the stand and the mounted receiver does not exceed 7 kg.
| |

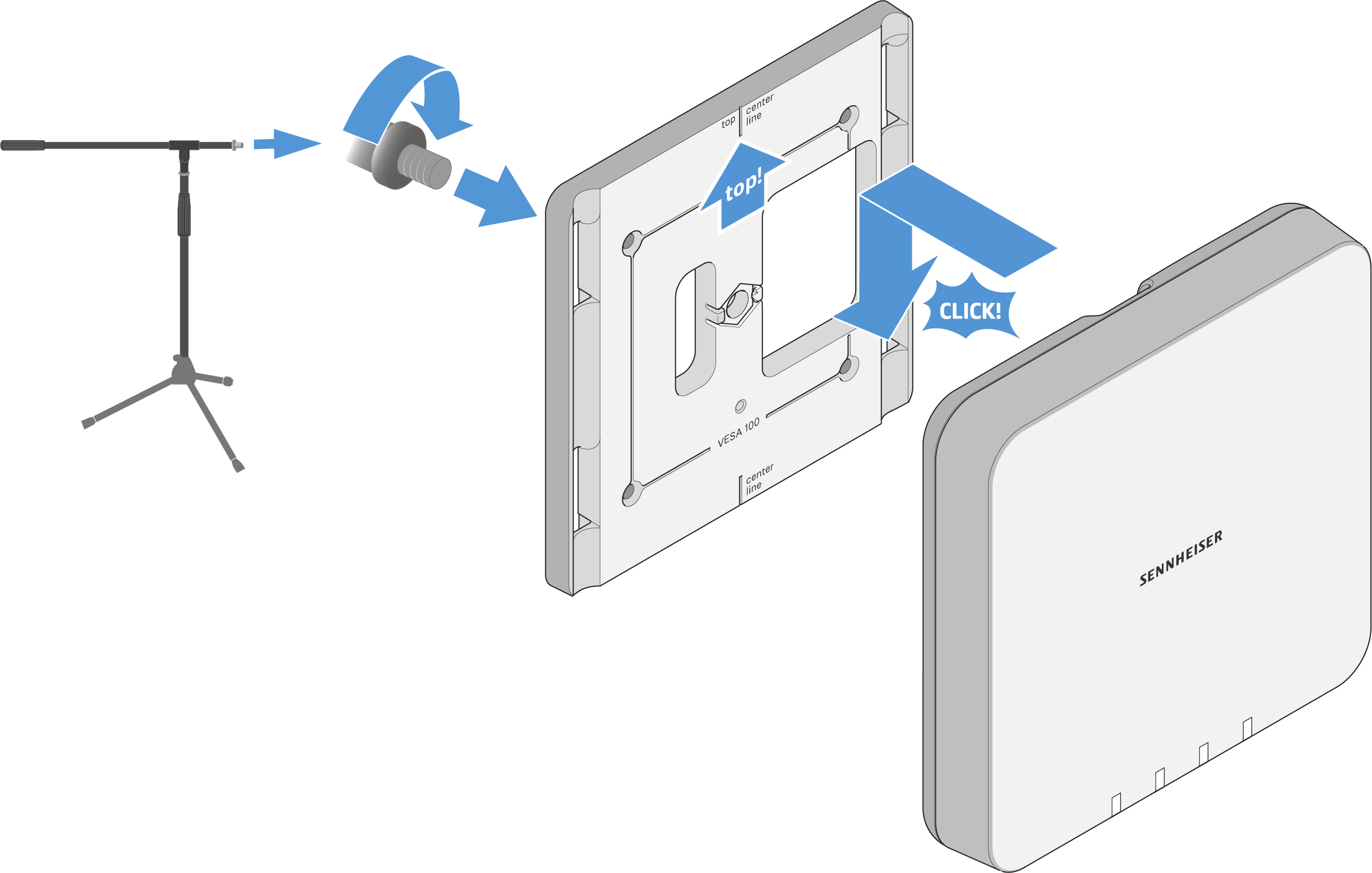

- Screw the mounting frame onto the microphone stand as shown.
-
Insert the receiver into the mounting frame as shown until you hear it click into place.
