Mounting the receiver on the ceiling

To mount the receiver on the ceiling, you will need the mounting frame supplied.

Screws and anchors for mounting the product to the wall are not included with delivery. Use screws and anchors that are appropriate for the particular characteristics of your wall.

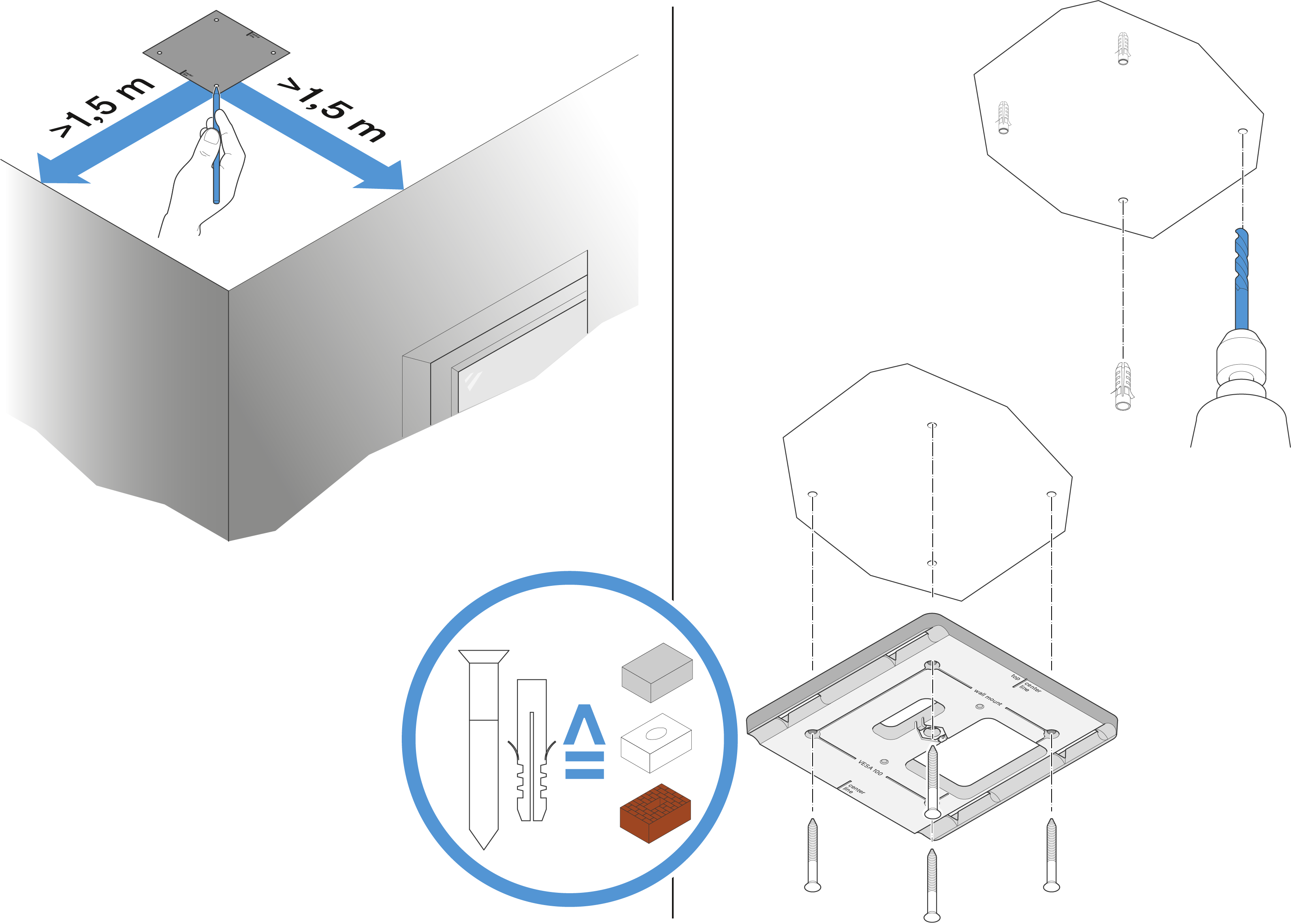

  1. Use the included drilling template to mark the drill holes for ceiling mounting.
  2. Maintain a minimum distance of 1.5 m from the walls.
  3. Screw the mounting frame to the ceiling using four suitable screws and anchors.

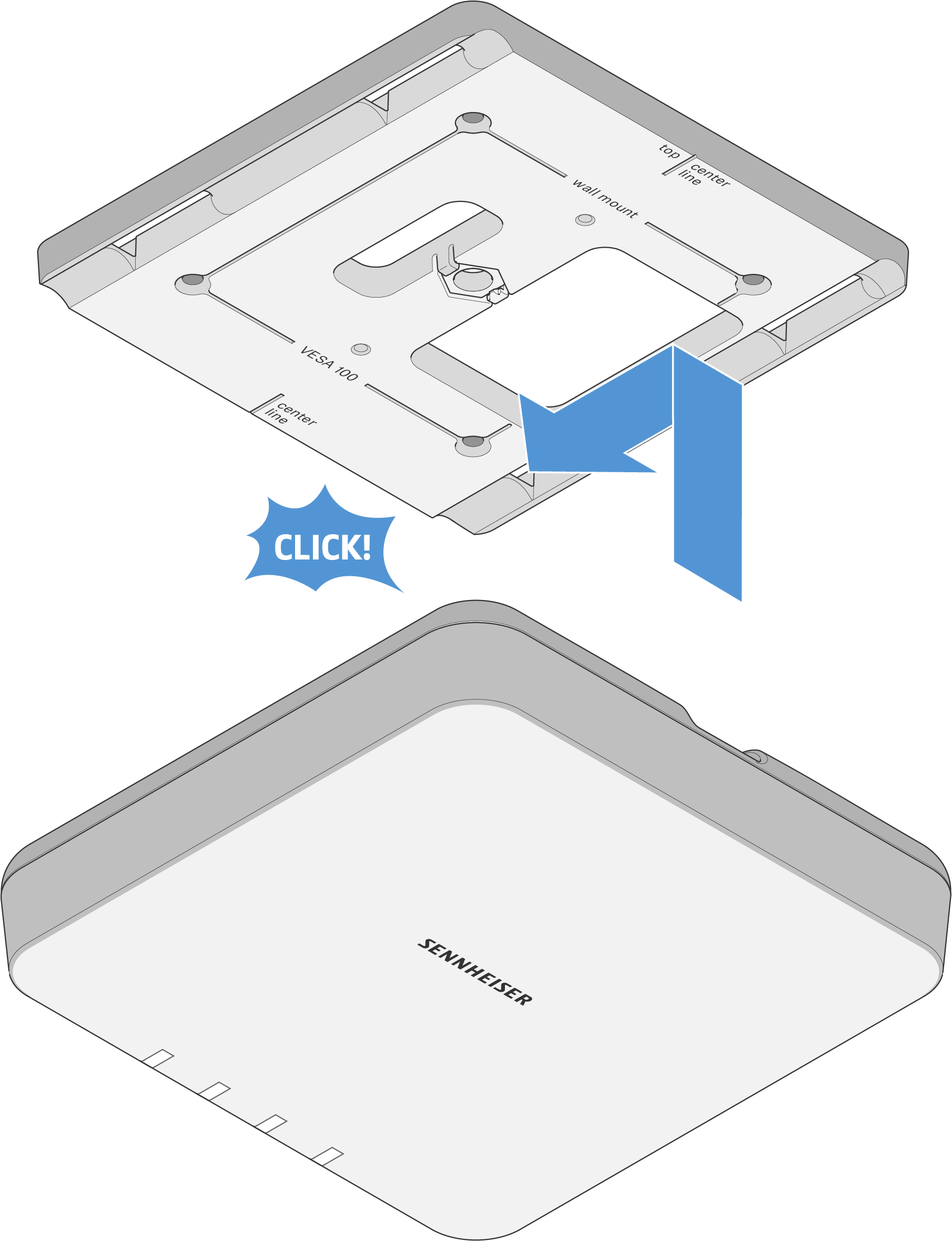

  4. Insert the receiver into the mounting frame as shown until you hear it click into place.
