Ew 100 G4 synchronizing

You can synchronize ew 100 G4 series transmitters and receivers via the receiver’s infrared interface.

The following Parameters are transferred to the transmitters:

Frequency Preset >> currently configured frequency (see Frequency Preset menu item)
Name >> currently configured frequency (see Name menu item)
Pilot Tone >> current setting of the pilot tone on the receiver (see Advanced -> Pilot Tone menu item)

To synchronize the devices:

Switch the transmitter and the receiver on.

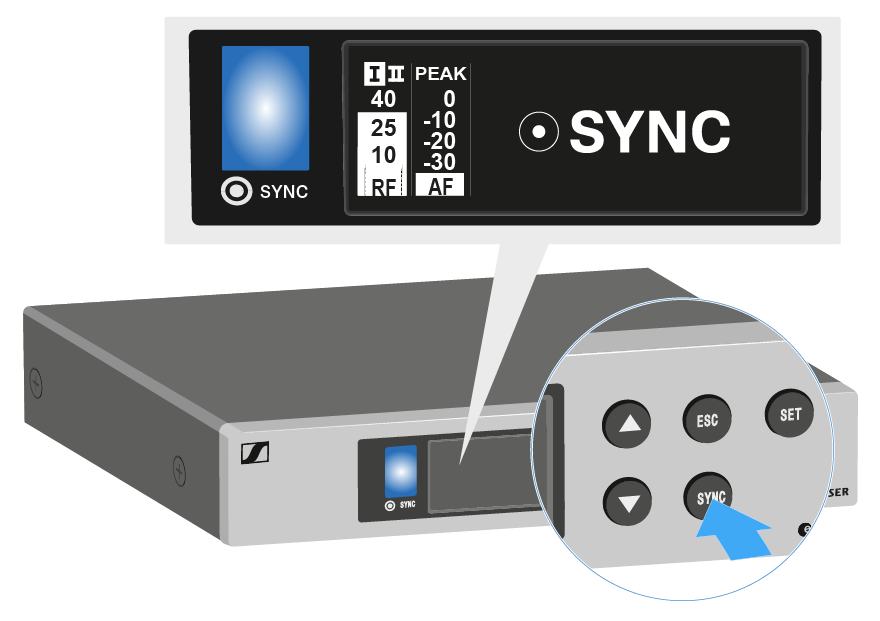

Press the SYNC button on the receiver.
Sync appears in the receiver’s display and the blue LED turns blue.

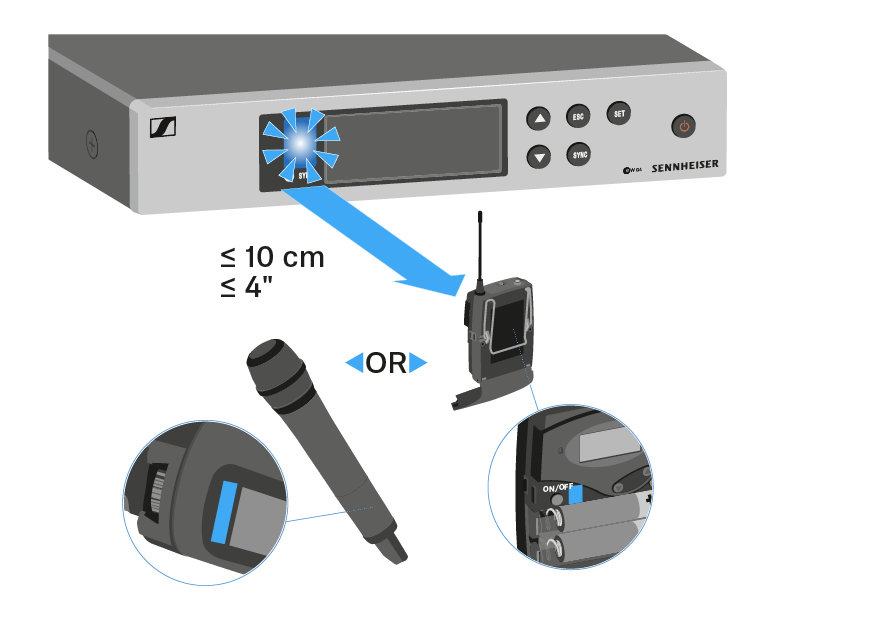

Hold the infra-red interface of the transmitter (see SKM Product overview and SK Product overview) in front of the infra-red interface of the receiver (see EM Front).

The parameters are transferred to the transmitter. The blue LED blinks during transmission.
When the transfer is complete, a tick appears in the receiver’s display as a confirmation.

Then the receiver will return to the current standard display.

To cancel synchronization:

Press the ESC button on the receiver.
An X appears in the display.
This icon also appears when:
- no transmitter is found or the transmitter is not compatible.
- no transmitter is found and the synchronization process automatically ends after 30 seconds.
