Ew 500 P G4 synchronizing

You can synchronize ew 500 P G4 series transmitters and receivers via the receiver’s infrared interface.

You can adjust the Parameters to be transferred to the transmitter here: Advanced -> Sync Settings menu item.

To synchronize the devices:
  1. Switch the transmitter and the receiver on.
  2. Call up the Sync menu item on the receiver.
    Sync appears in the receiver’s display.

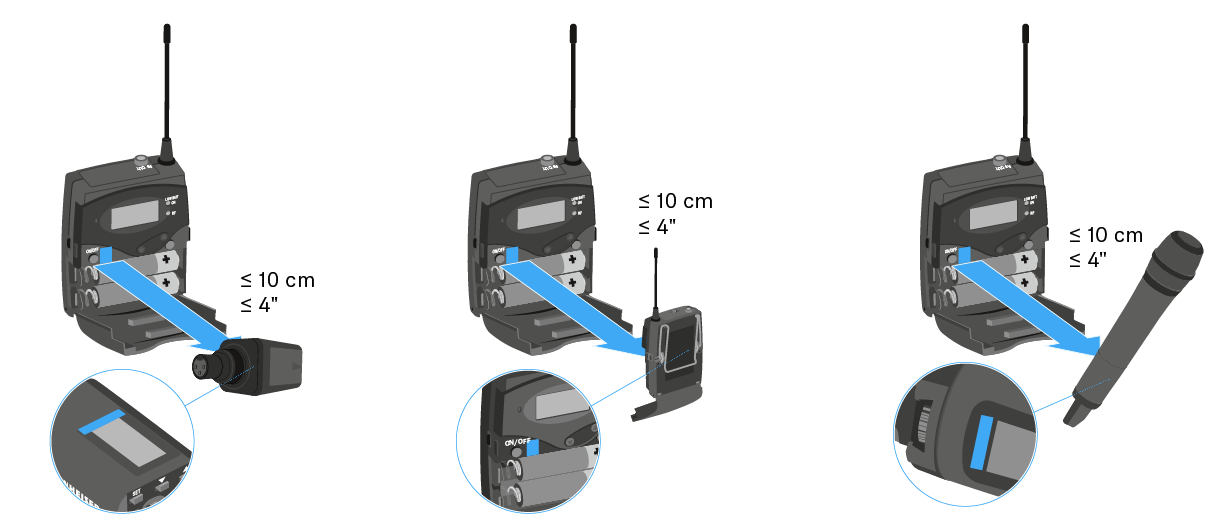

  3. Hold the infra-red interface of the transmitter in front of the infra-red interface of the receiver.
    The parameters are transferred to the transmitter. When the transfer is complete, a tick appears in the receiver’s display as a confirmation. Then the receiver will return to the current standard display.

To cancel synchronization:
  1. Press the ESC button on the receiver.
    An X appears in the display.
    This icon also appears when:
    • no transmitter is found or the transmitter is not compatible.
    • no transmitter is found and the synchronization process automatically ends after 30 seconds.
