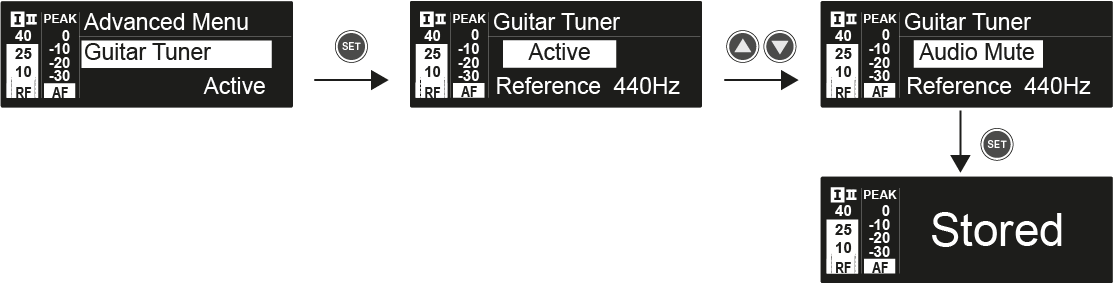

Advanced -> Guitar Tuner menu item

In the Guitar Tuner menu item of the Advanced submenu, you can adjust the options of the guitar tuner.

The guitar tuner is opened in the Guitar Tuner standard display on the home screen. See Guitar Tuner standard display.

Inactive: The guitar tuner is deactivated.
Active: The guitar tuner is activated.
Audio Mute: The guitar tuner is activated. Once the Guitar Tuner standard display is open on the home screen, the audio signal is muted.
