Outputting audio signals

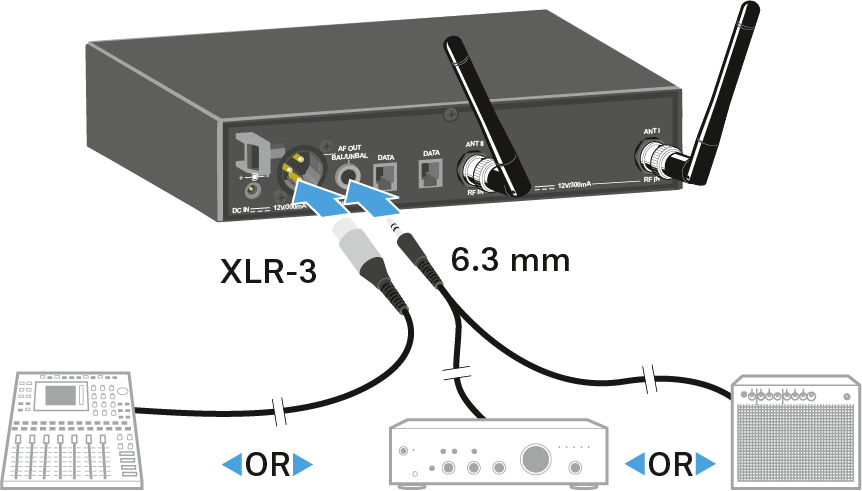

The EM 100 G4 has a balanced XLR-3M output socket and an unbalanced 6.3 mm jack output socket.
- Always use only one of the two AF OUT output sockets for each channel.
To connect an XLR cable:
- Plug the XLR cable into the AF OUT BAL socket of the EM 100 G4.
To connect a jack cable:
-
Plug the jack cable into the AF OUT UNBAL socket of the EM 100 G4.
