Operation

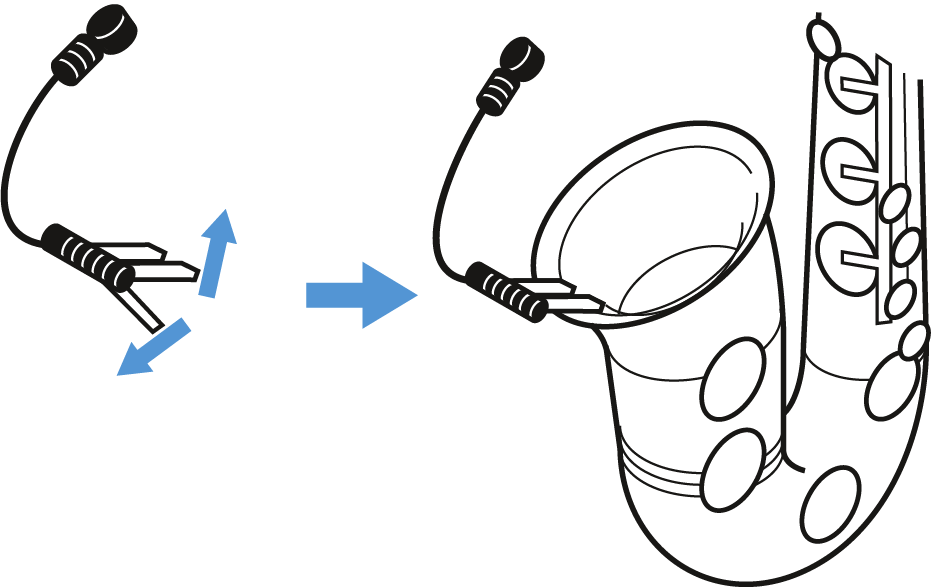

Positioning the microphone on a wind instrument
  1. Use the microphone clamp to attach the e 608 to the bell of the instrument.

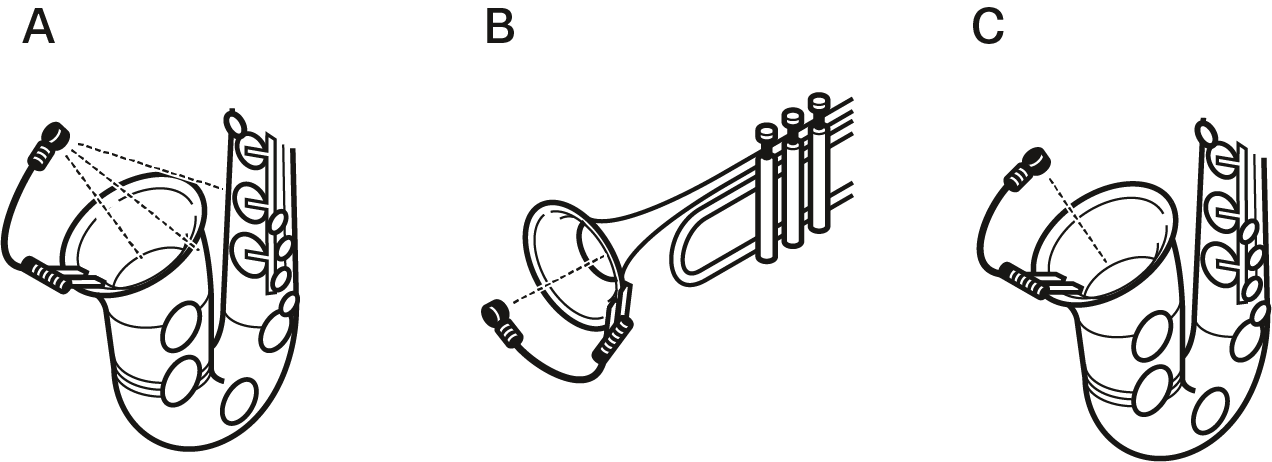

  2. It is vital to observe the following notes:
    Position A and B: Use the supplied clamp to attach the microphone to the bell of the instrument.
    • Resulting sound Position A: reduced ambient noise
    • Resulting sound Position B: clear, powerful sound
  3. Position C: For a Saxophone, the microphone should normally be directed partly towards the bell and partly towards the body of the instument.
    • Resulting sound: Balanced, natural sound

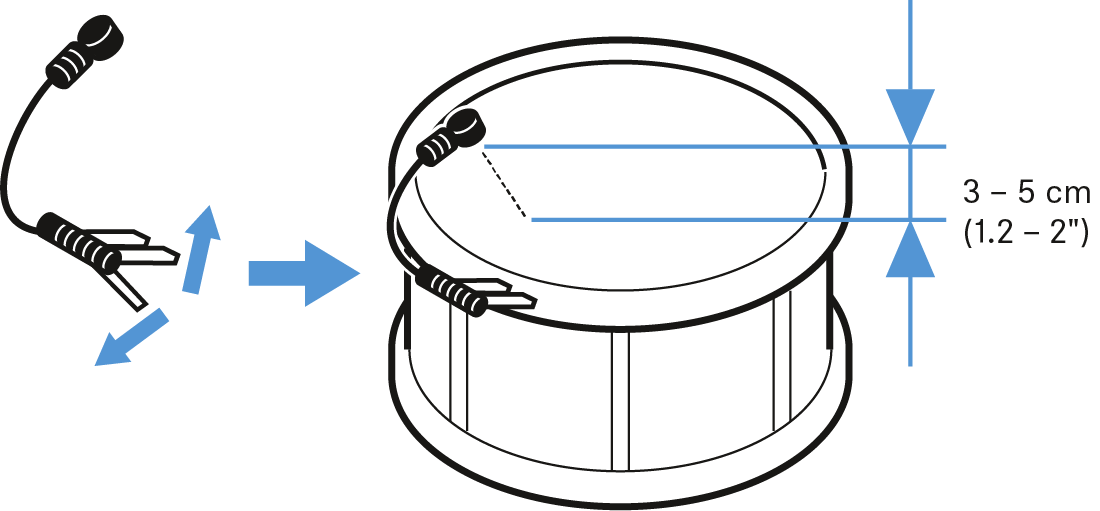

Positioning the microphone on a drum
  1. Attach the drum clamp to the rim of the drum.
  2. Position the microphone on the drum so that it is 3 to 5 cm above the drumhead.

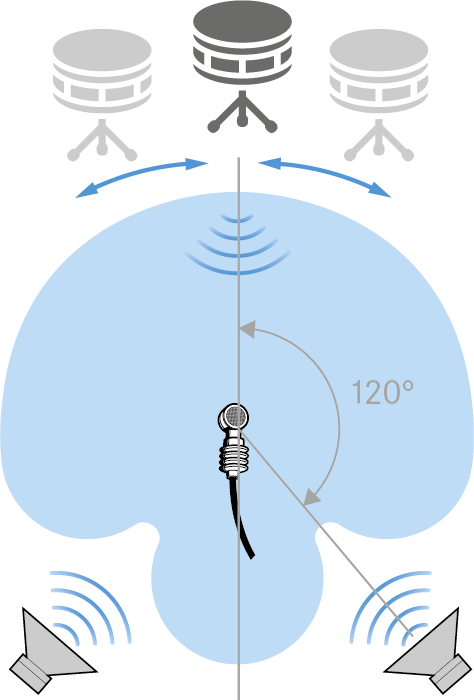

Positioning the monitor loudspeakers
  1. To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the highest cancellation of the microphone (approx. 120°, see Polar pattern).
