Starting up and operating devices of the evolution wired series.
e 608
Installation

Instruction manual
Starting up and operating devices of the evolution wired series.
- e 602 II
- e 604
- e 608
- e 609
- e 614
- e 825-S
- e 835 | e 835-S | e 835-S-PTT
- e 845 | e 845-S
- e 865 | e 865-S
- e 901
- e 902
- e 904
- e 906
- e 908
- e 914
- e 935
- e 945
- e 965
- MZA 900 P
- Cleaning and maintenance
  Note the following information when cleaning and maintaining evolution wired series products.

Installation

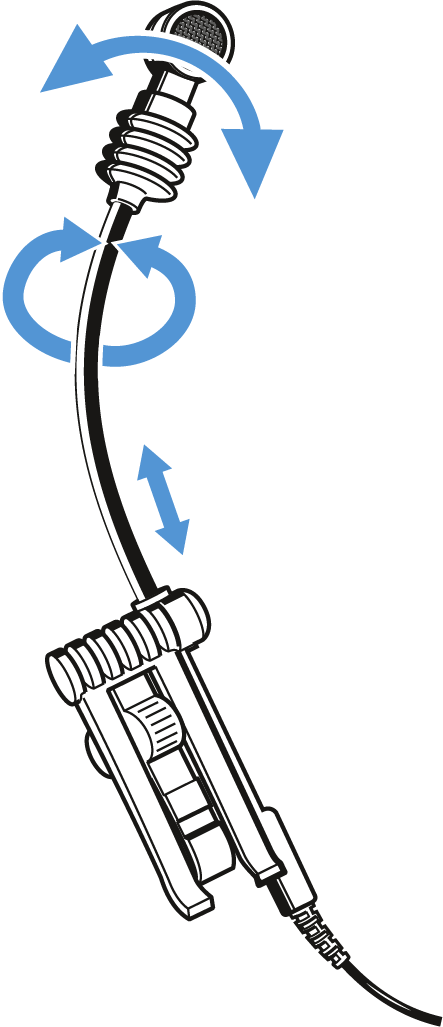

Attaching the microphone

Carefully bend the flexible goose neck.

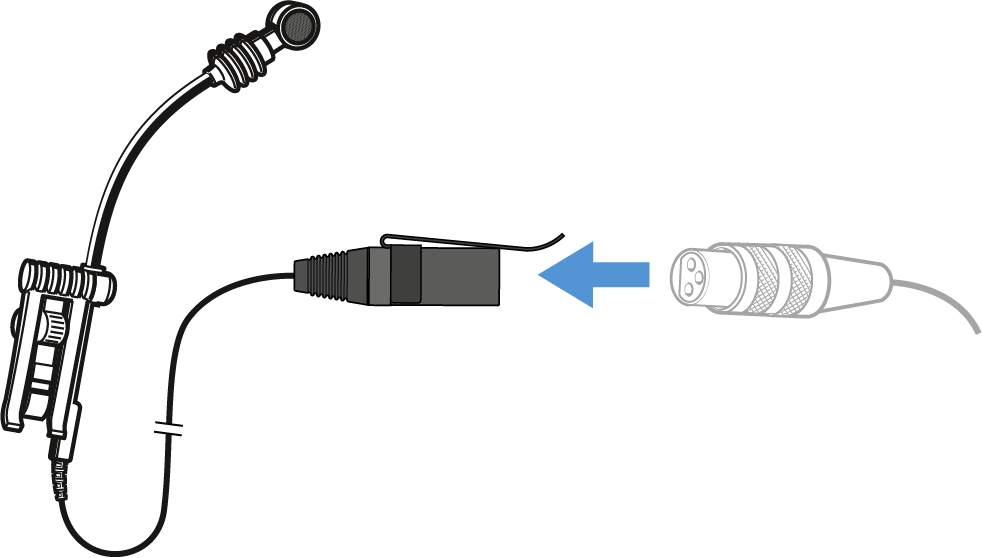

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of the microphone.

Using accessories

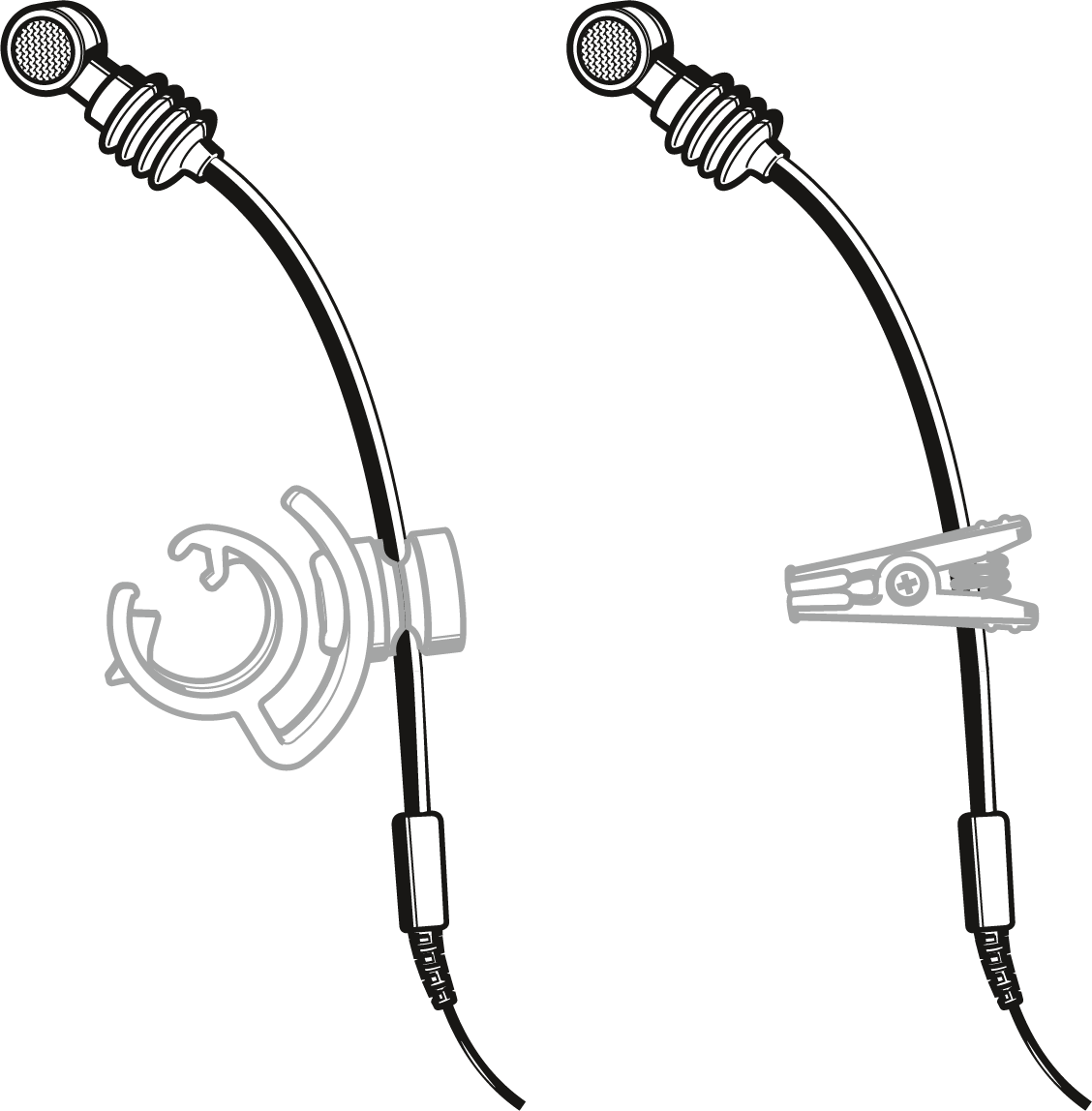

The MZH 908 D (left image) and MZH 908 B (right image) clips are available as optional accessories for the e 608.

Remove the attached clip from the goose neck.
Unscrew the screw on the clip.
Press the clip firmly onto the goose neck.
Tighten the screw on the clip.
