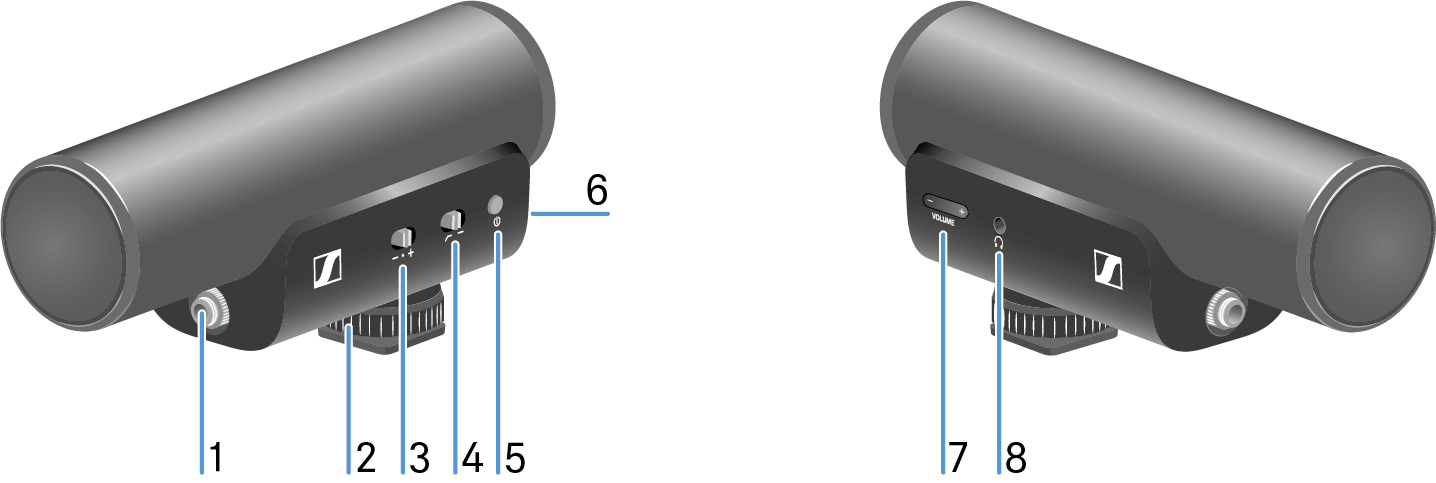

Product overview



1 Output socket, 3.5 mm jack, screwable
see Installation
2 Knurled washer
see Installation
3 Switch Gain
see Operation
4 Switch Low cut
see Operation
5 Button On/Off with LED
see Operation
6 Battery compartment
see Installation
7 Volume control for the headphone socket
see Installation
8 Headphone socket, 3,5 mm jack
see Installation
