Specifications
All specifications at a glance.
MKE 200
Transducer principle
- pre-polarized condenser
Frequency response
- 40 - 20.000 Hz
Pick-up pattern
- super cardioid
Sensitivity at 1 kHz
- -33 dBV/Pa
Max SPL at 1 kHz
- 120 dB
Equivalent noise level
- 20 db(A)
Plug-in power required
- 2 - 10 V
Color
- black
Connector
- 3.5 mm jack, screwable
Dimensions
- 69 x 60 x 39 mm
Weight
- 48 g

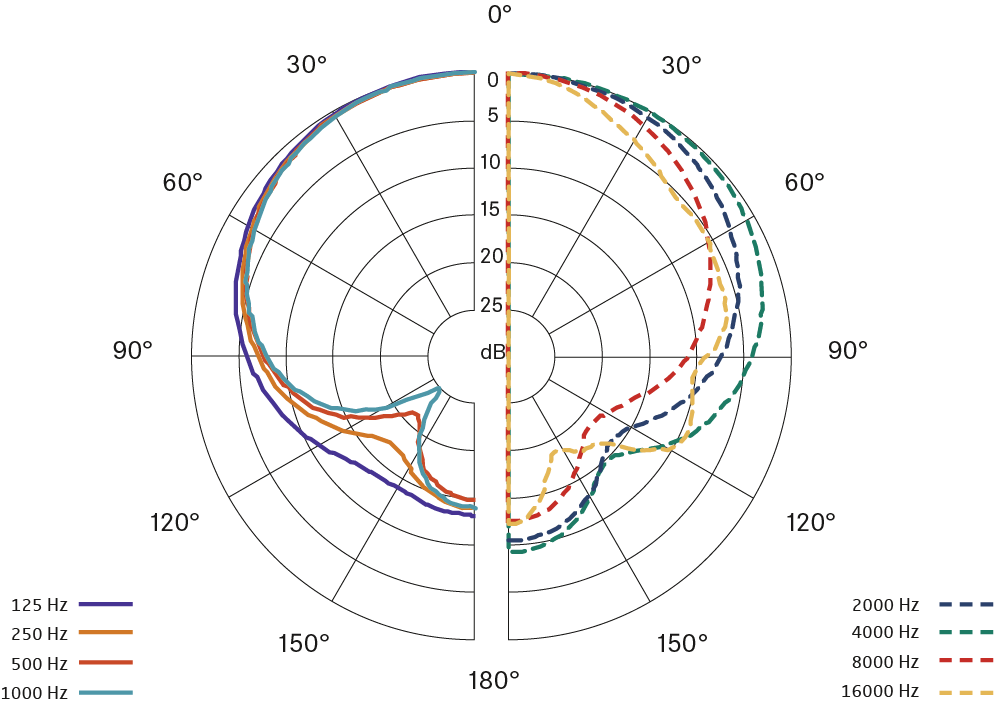

Polar pattern

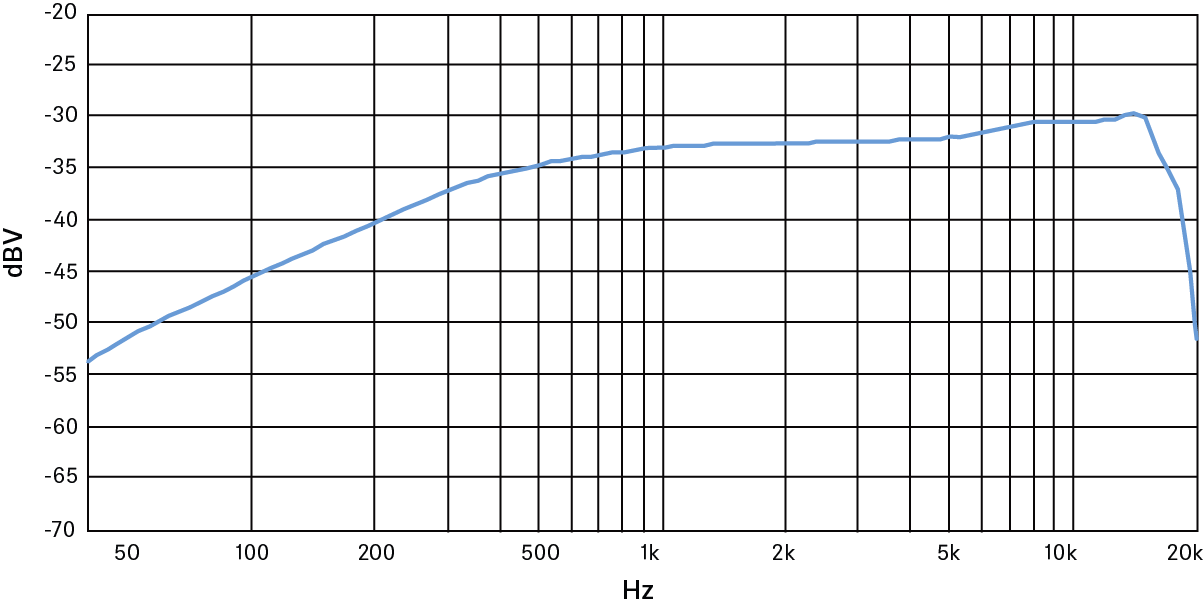

Frequency response
MKE 400
Transducer principle
- pre-polarized condenser
Frequency response
- 50 - 20.000 Hz
Pick-up pattern
- super cardioid
Sensitivity at 1 kHz
- -23 / -42 / -63 dBV/Pa
Max SPL at 1 kHz
- 132 dB
Power supply
- battery (2x AAA / LR03 size, 1,5 V)
Plug-in power required
- 2 - 10 V
Operating time
- > 100 h (less when headphone is connected)
Low battery indicator
- > 3 h of remaining operating time
Connector
- 3.5 mm jack, screwable
Dimensions
- 126 x 67 x 37 mm
Weight
- 93,5 g
Headphone output
Headphone output
- 3,5 mm jack
Min. headphone impedance
- 16 Ω
Output power at 1 kHz
- 105 mW (headphone impedance 16 Ω)
- 70 mW (headphone impedance 32 Ω)
Total harmonic distortion
- < 1 % at 50 mW
Digital volume control
- 8 steps of 6 dB

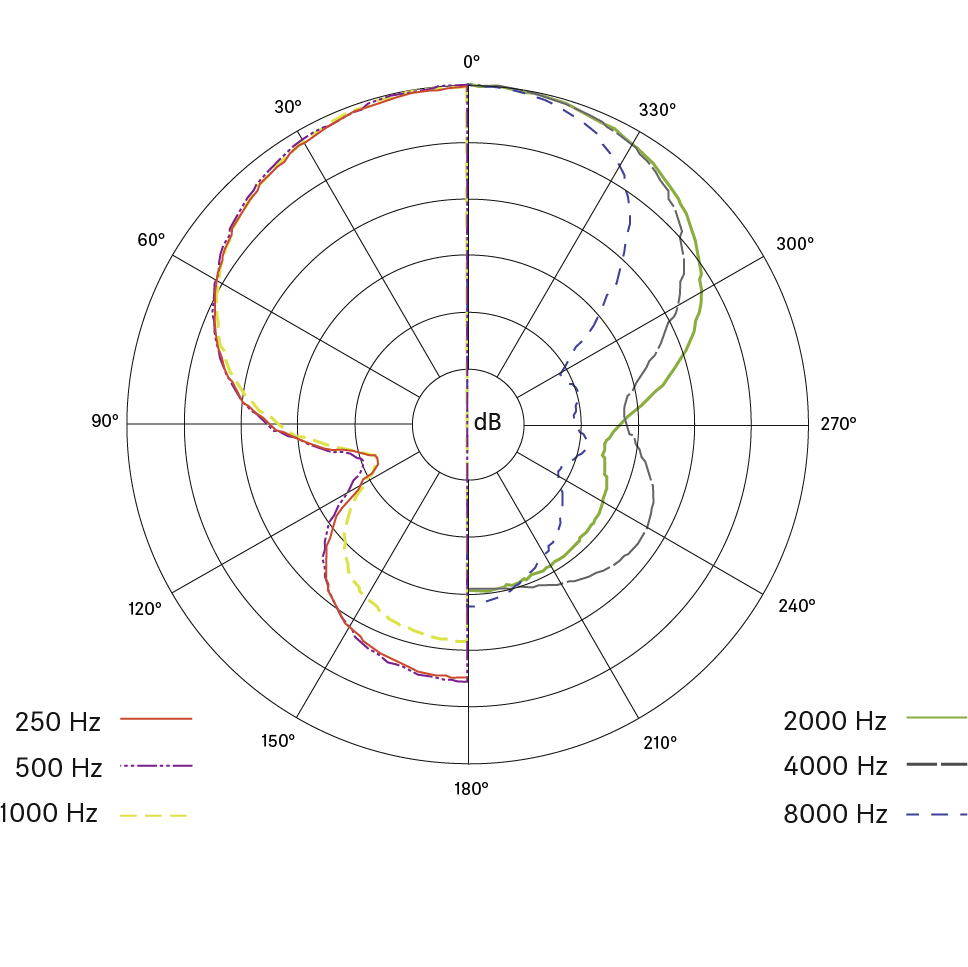

Polar pattern

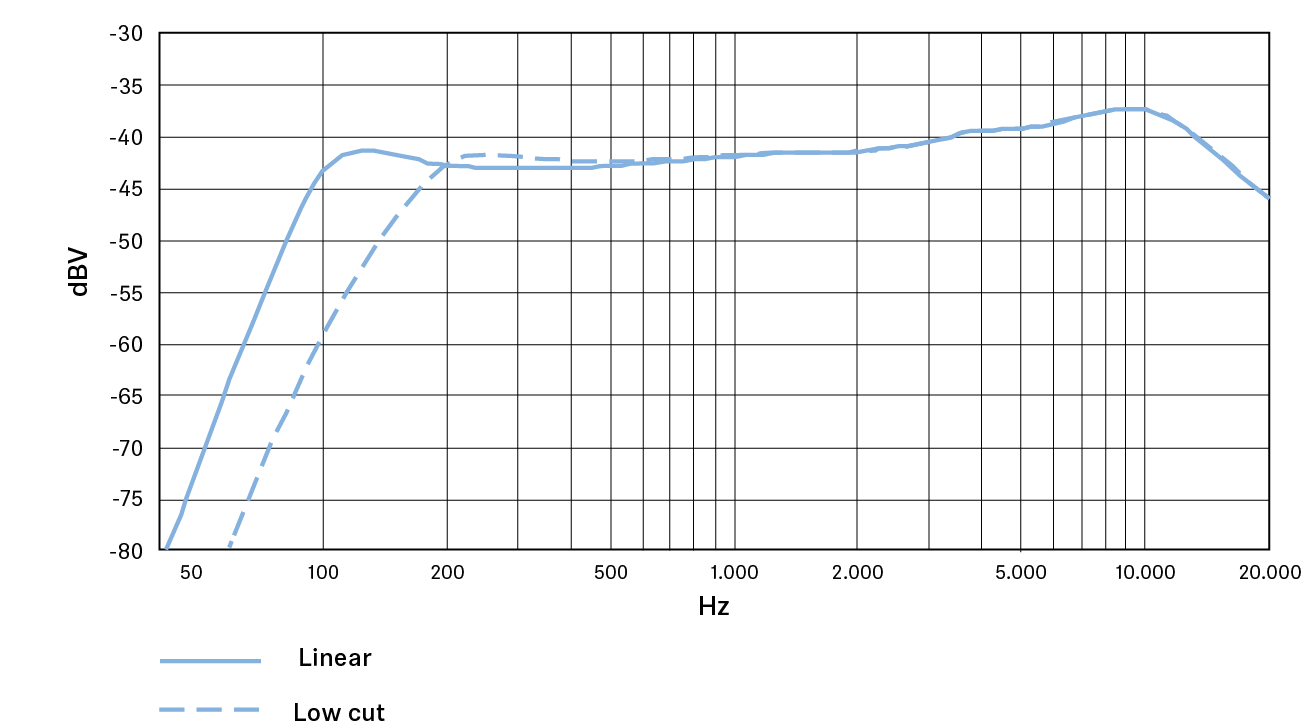

Frequency response
MKE 440
Frequency response
- 50 - 20.000 Hz
Pick-up pattern
- Stereo, super cardioid
Sensitivity at 1 kHz
- -23 / -42 / -63 dBV/Pa
Max SPL at 1 kHz
- 132 dB
Equivalent noise level
- 16 / 21 / 40 db(A)
Power supply
- Battery / rechargeable battery (AAA size, 1,5 V / 1,2 V)
Supply current
- max. 8 mA
Operating time
- Battery > 100 h
Low battery indicator
- > 4 h of remaining operating time
Connector
- 3,5 mm jack
Dimensions
- 67 x 106 x 128 mm
Weight
- ca. 165 g (without battery))
Temperature
- Operation: -10 °C to +55 °C
- Storage: -20 °C to +70 °C
Relative humity
- max. 90% at 40 °C

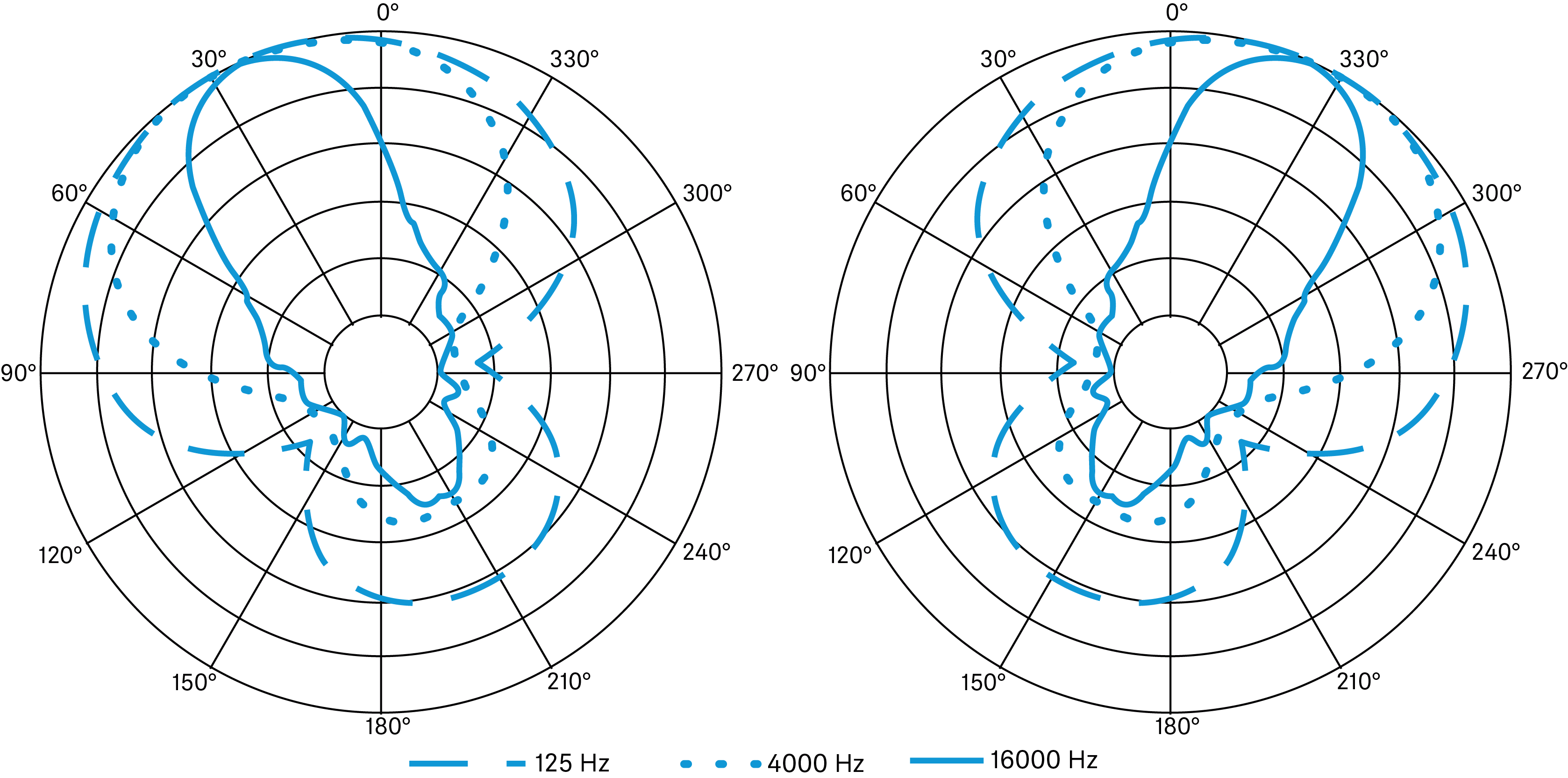

Polar pattern

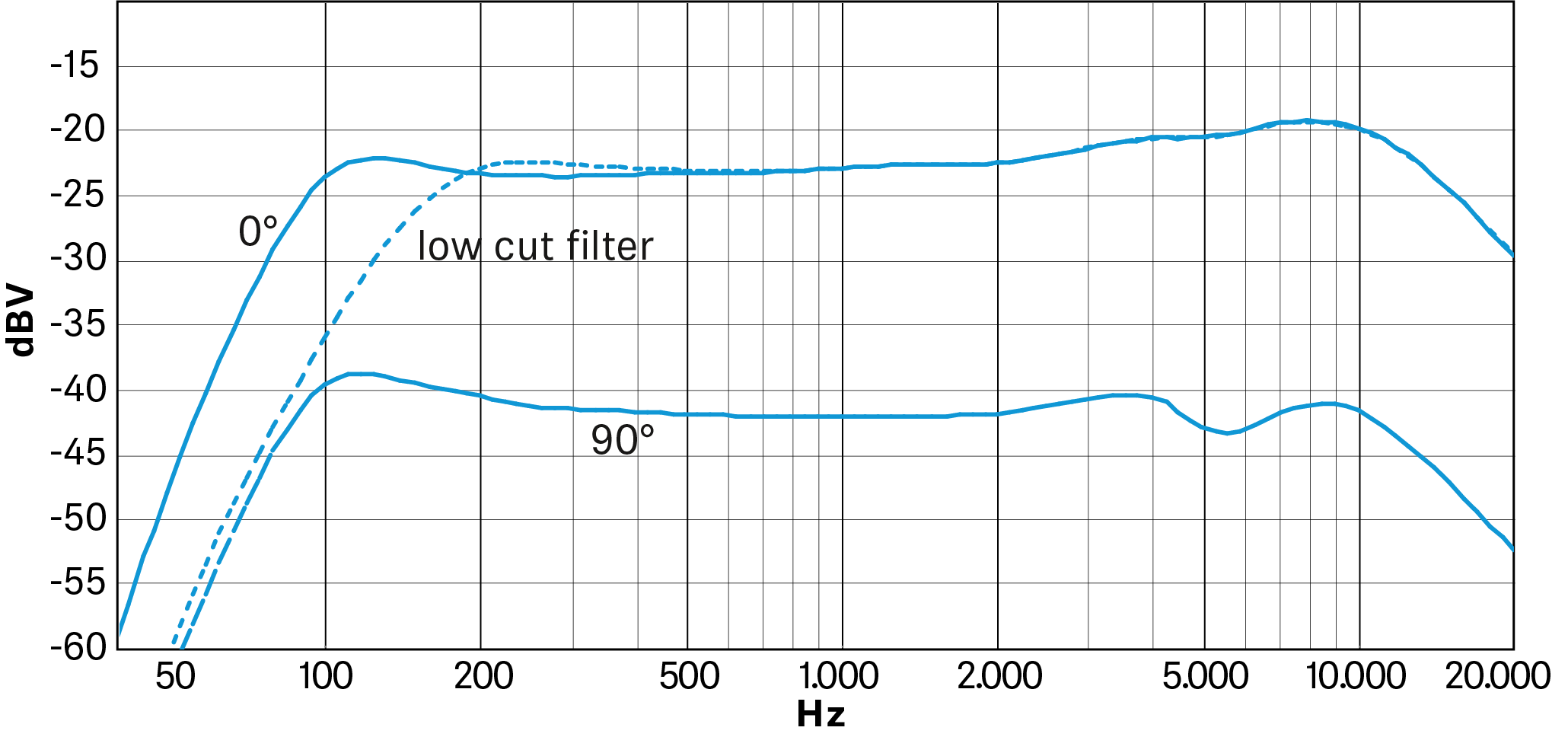

Frequency response
