    - Setting the FOCUS
      In stereo mode, the FOCUS function controls the signal received from the transmitter at the receiver.
      - FOCUS - Possible settings
    - Panorama setting
      In the PAN menu item, you can control the volume distribution of an audio signal over two channels.
- XSW IEM SR stereo transmitter
- Establishing a radio link
- Synchronizing devices
- Cleaning and maintenance

Setting the FOCUS

In stereo mode, the FOCUS function controls the signal received from the transmitter at the receiver.

The FOCUS setting has no function in the mono configuration.

The signals at the receiver are reproduced either as mixed mono signals (FOCUS ON) or as mixed stereo signals (FOCUS OFF).

Setting range:

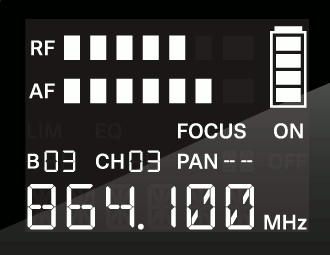

To switch FOCUS on or off:

Press the SET button repeatedly until the FOCUS display flashes.
Press the UP or DOWN button to change the set values.
Press the SET button
- briefly to temporarily save the settings and move to the next menu item
- for two seconds to immediately save the changes and exit the menu
