Single domain mode

The Sennheiser Control Cockpit is in the same network as the Dante controller.

This mode is generally used if you want to use both the controller (from Sennheiser or a third-party provider) and Dante® on the same physical port with only one available IP in the same network. To set up both configurations, you need the Sennheiser Control Cockpit for the control network and the Dante controller for other routed Sennheiser devices.

Use this mode if you want to:

Configure both the Dante® and the control network using a switch
Use only one IP for both networks
Control both networks using a single network connection of the TC Bar.

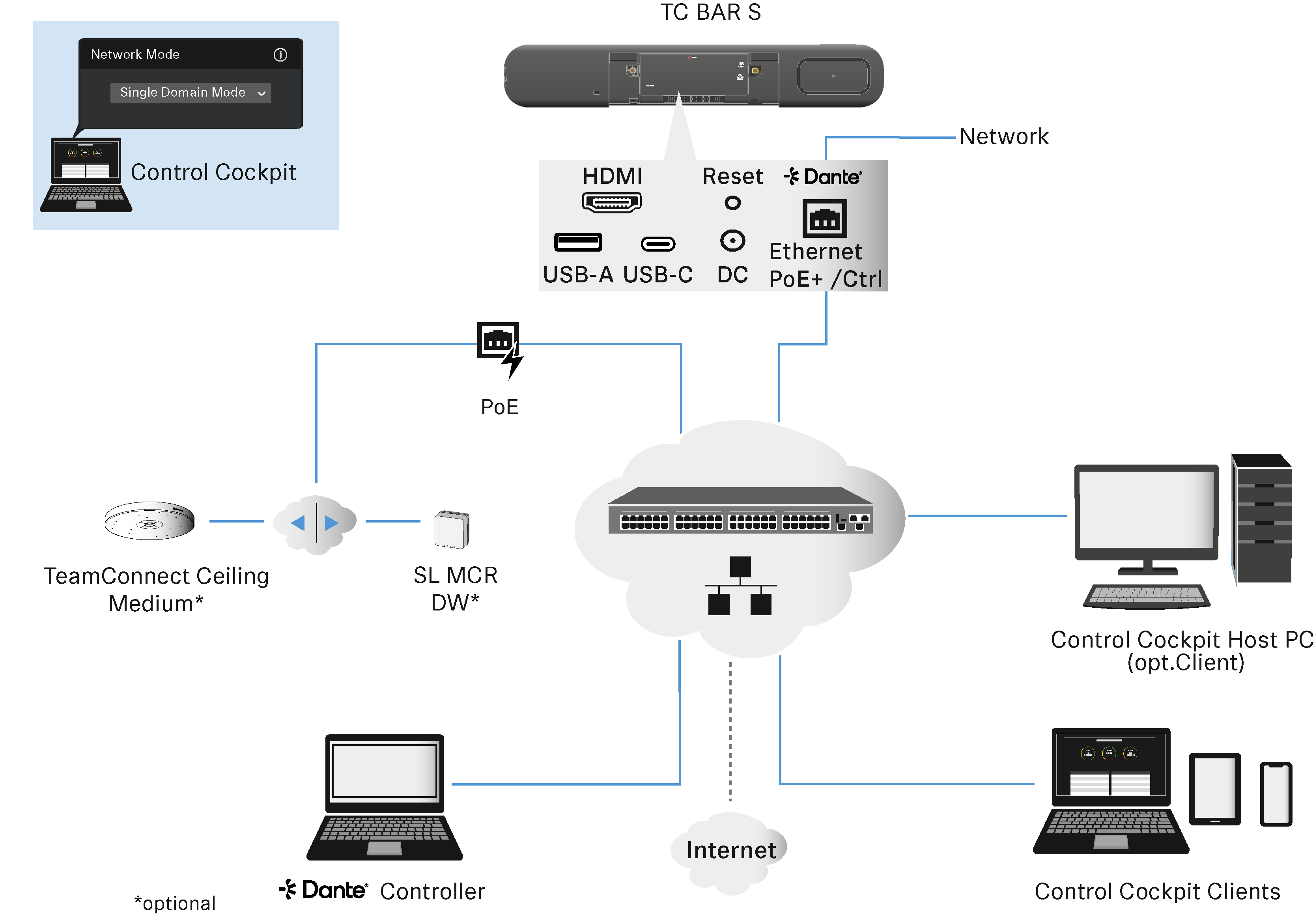

Simplified network diagram for the TC Bar S:

The TC Bar S has only one network connection and can provide only a combined data flow for Dante® and the control using a switch.

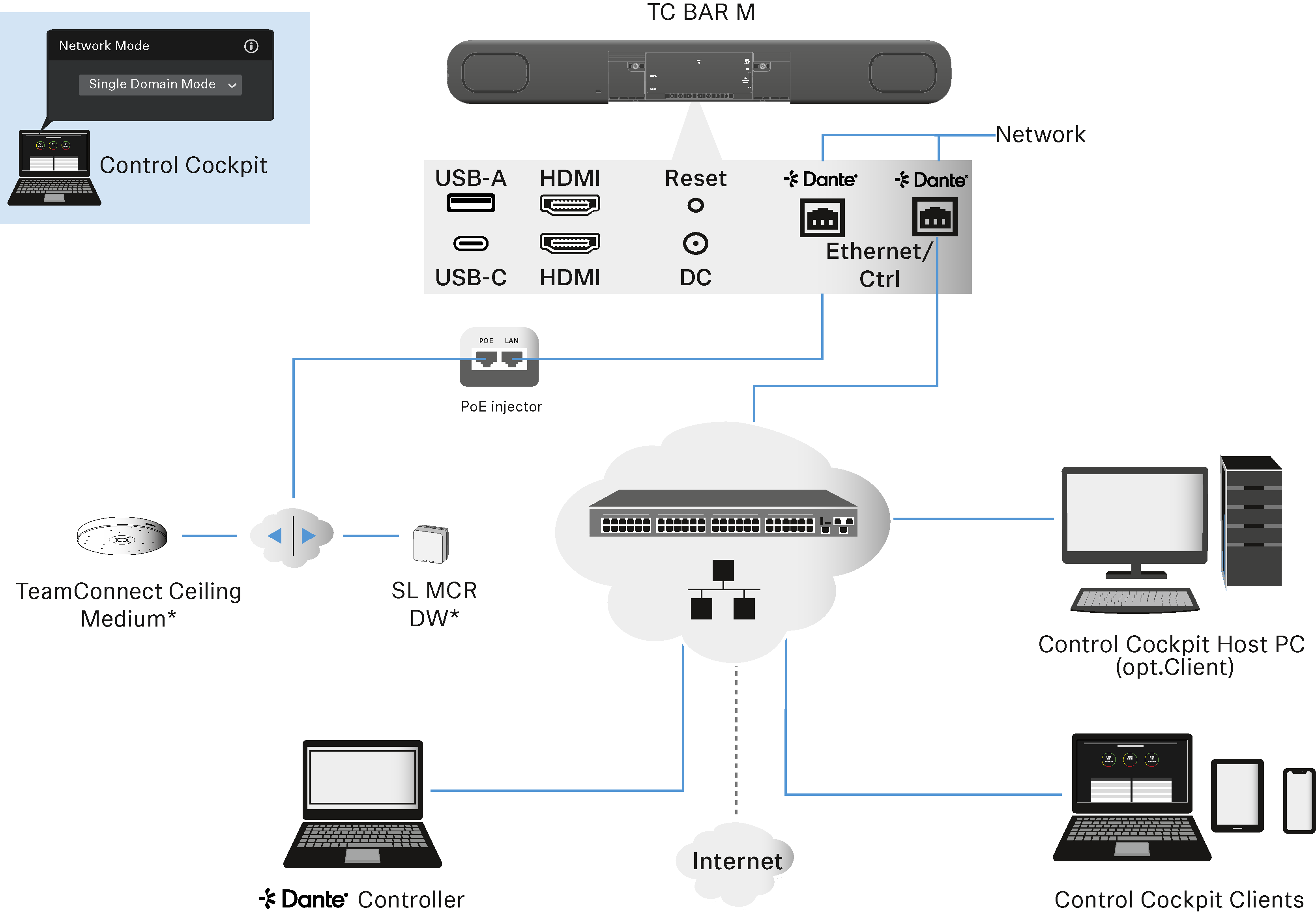

Simplified network diagram for the TC Bar M:

The TC Bar M has two network ports that share one IP in this mode.

One port can be used to control the bar via the network using the Dante controller and using the Cockpit Control directly via a switch. The other port serves to connect routed Sennheiser devices using the Dante controller (e.g., TCC M).

Any connected enhancements can be managed using the Dante controller and the Control Cockpit because the TC Bar M forwards the signals using the integrated switch.

To keep the second Ethernet connection of the TC Bar free, the enhanced Sennheiser products can also be connected using the network switch. Always make sure to connect the TC Bar M to two different networks that do not run through a common switch (see Danger of network loops). Otherwise, there is a danger of a network loop occurring.
