Danger of network loops

A network loop occurs when a network has more than one active path that takes information from the same source to the same destination.

The information runs in loops and is amplified via the additional path instead of stopping at the destination. Network loops can cause slow, irregular Internet connections or network failures.

Network loops can arise in particular through improper connection of the TC Bar M.

Always make sure to connect the TC Bar M to two different networks that do not run through a common switch. Otherwise, there is a danger of a network loop occurring.

Examples

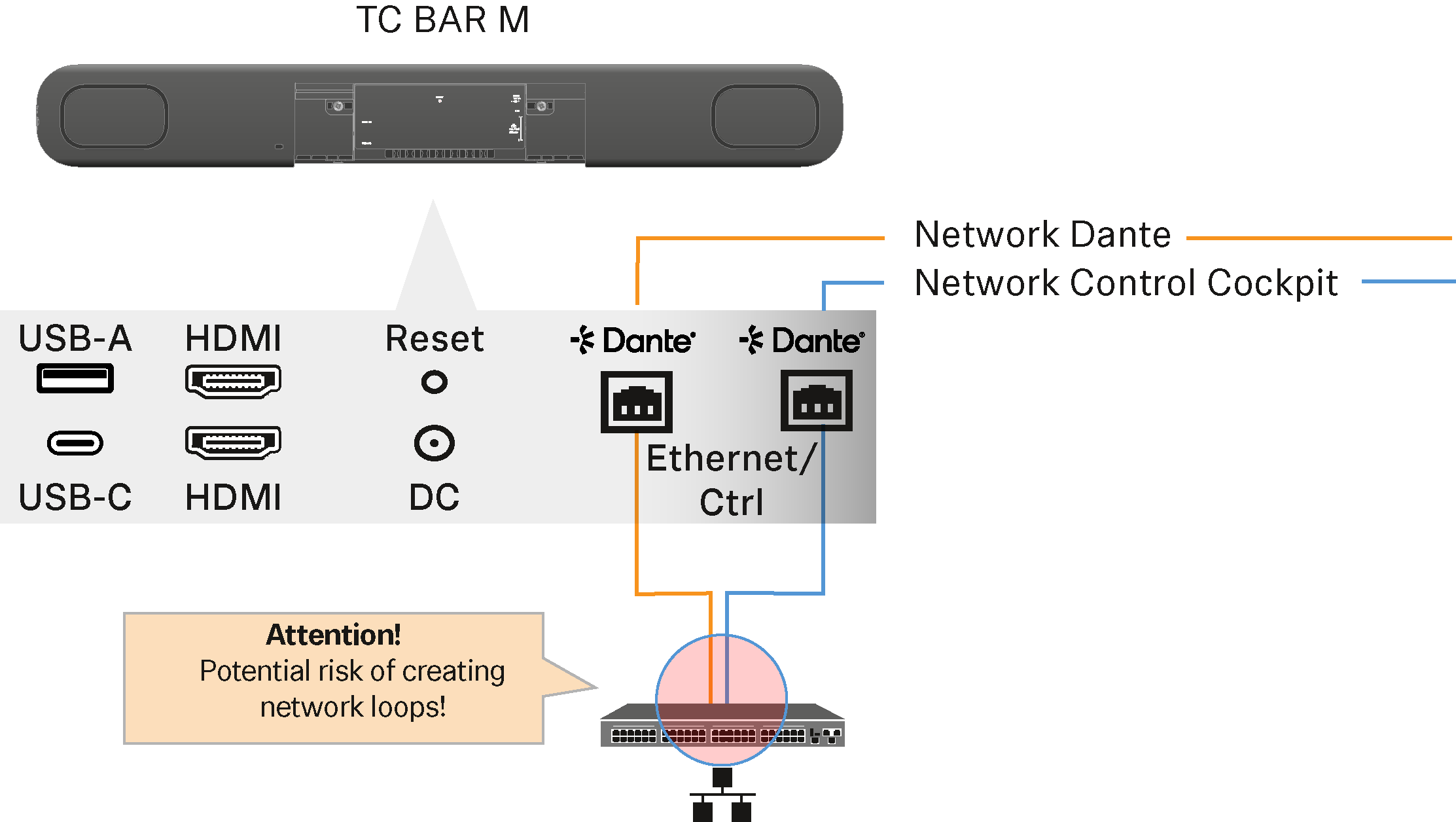

Both cables coming from the two connections of the TC Bar M are inserted into the same network switch.

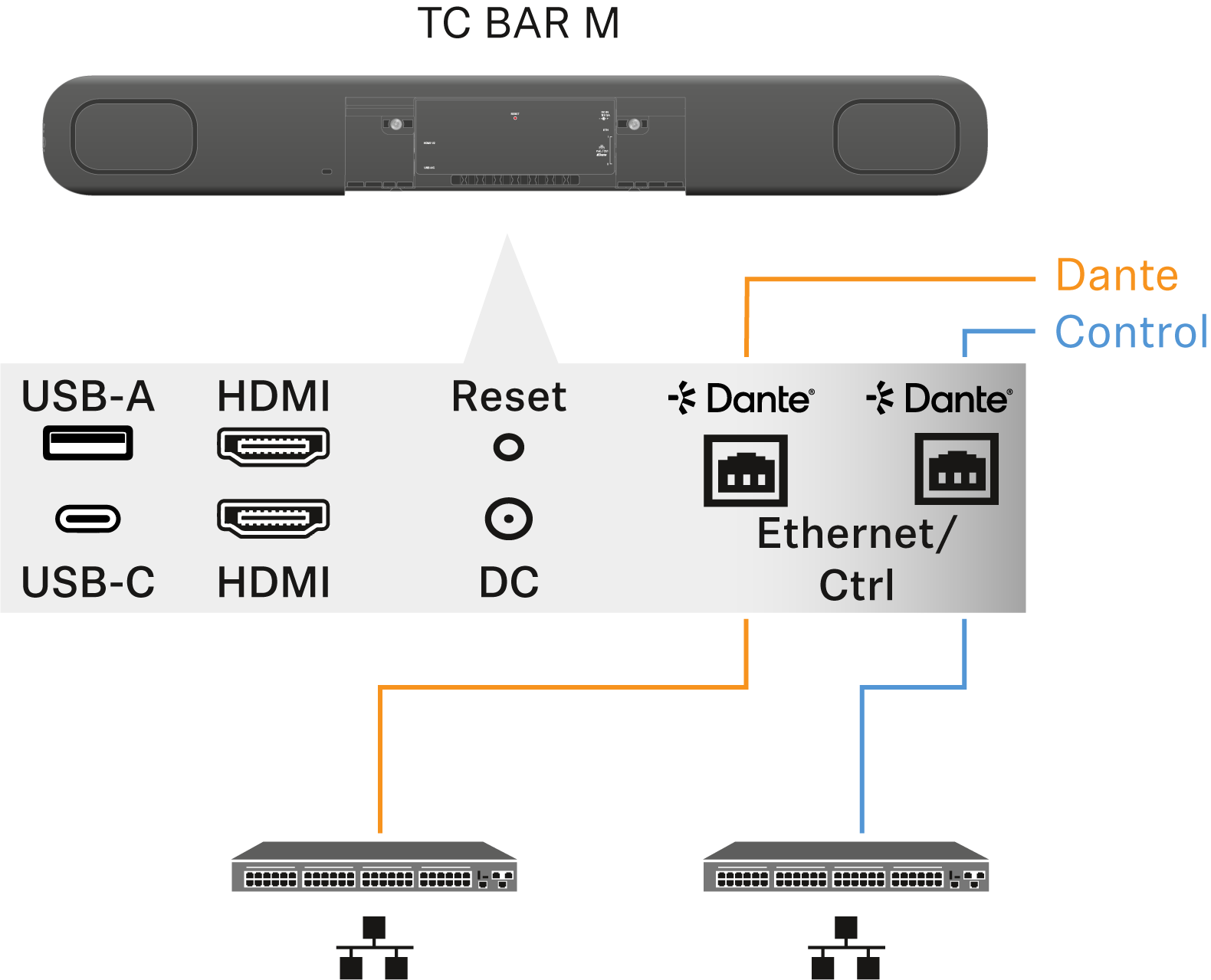

- Always make sure to connect the TC Bar M to two different networks that do not run through a common switch:
  - Ethernet I: Sennheiser Control Cockpit network
  - Ethernet II: Dante® network
Both ends of an Ethernet cable are connected to the same router.
- Remove the Ethernet cable.
