Mounting the TC Bar on a tripod

The mounting kit included in the delivery can be used to mount the TC Bar on a tripod.

Note:

The tripod is not included in the scope of delivery.

Mounting the TC Bar on a tripod:

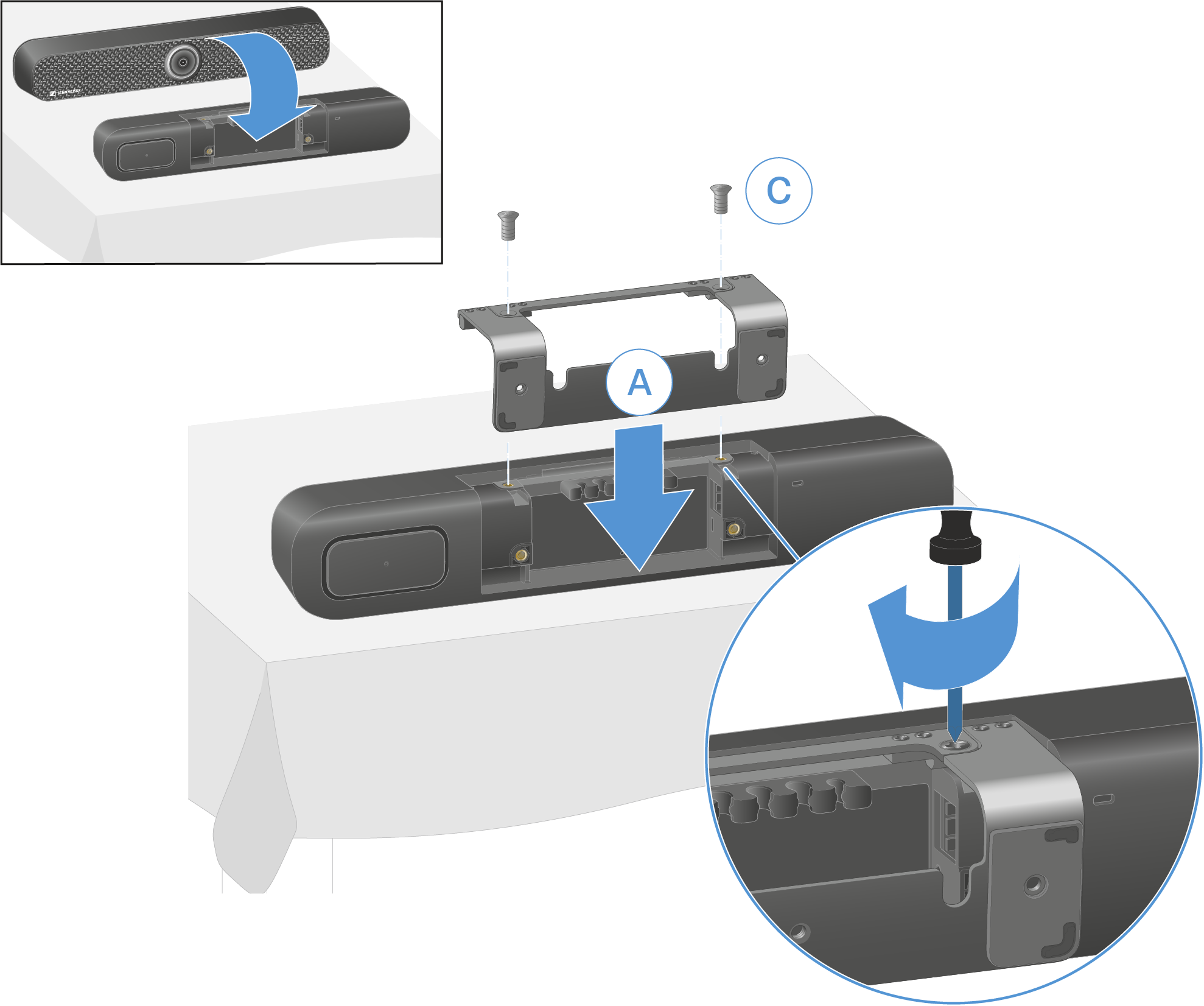

Place the TC Bar on a soft surface with its bottom facing up.
Place the bracket on the recess on the bottom intended for this purpose and screw the Phillips screws included in the delivery into the thread of the TC Bar.

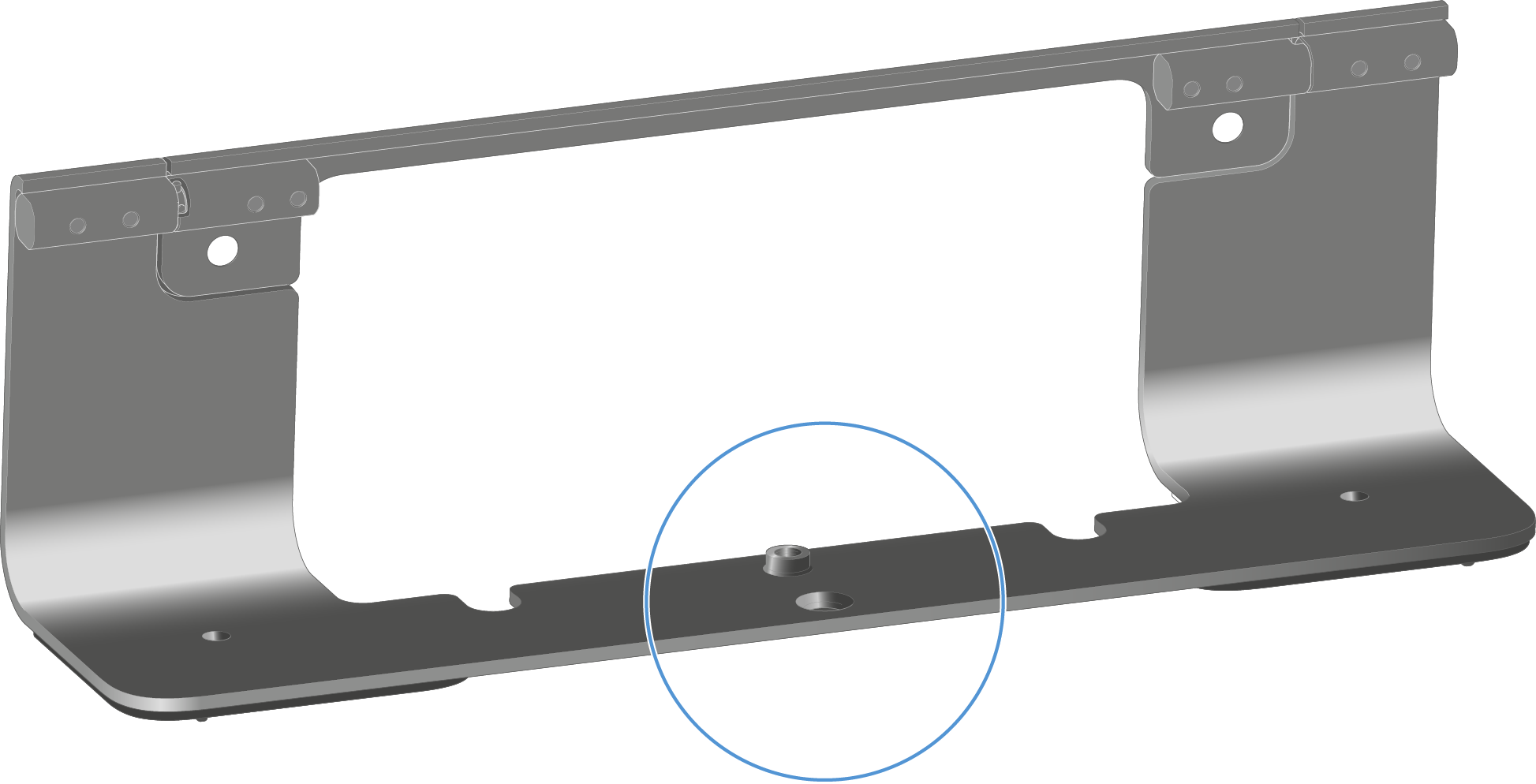

Mount the TC Bar on the tripod by mounting the tripod screw (not included in the scope of delivery) in the intended threaded sleeve of the bracket.

Note:
Please note that the tripod screw must have a ¼" UNC tripod thread.

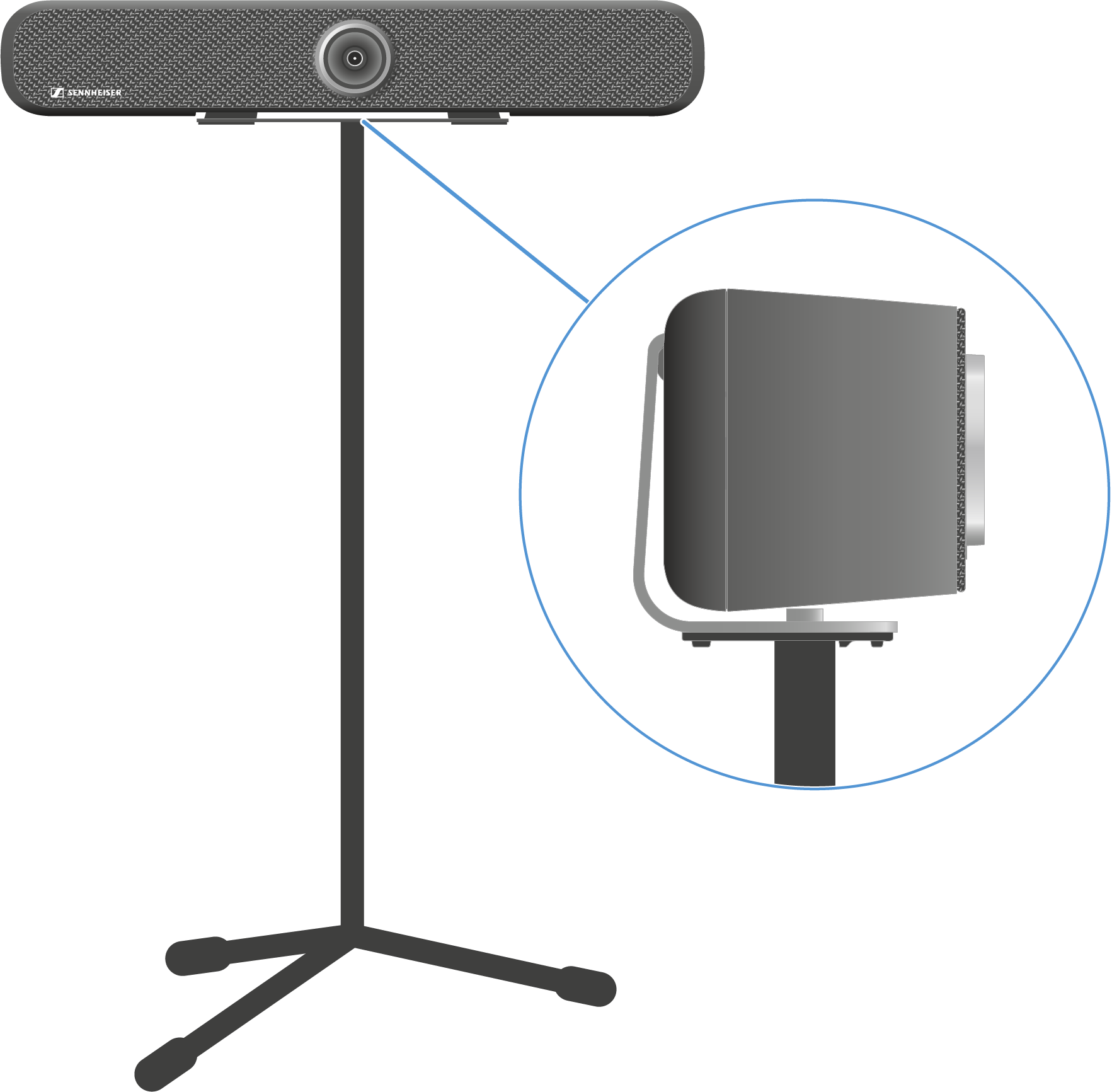

The TC Bar was successfully mounted on a tripod.
