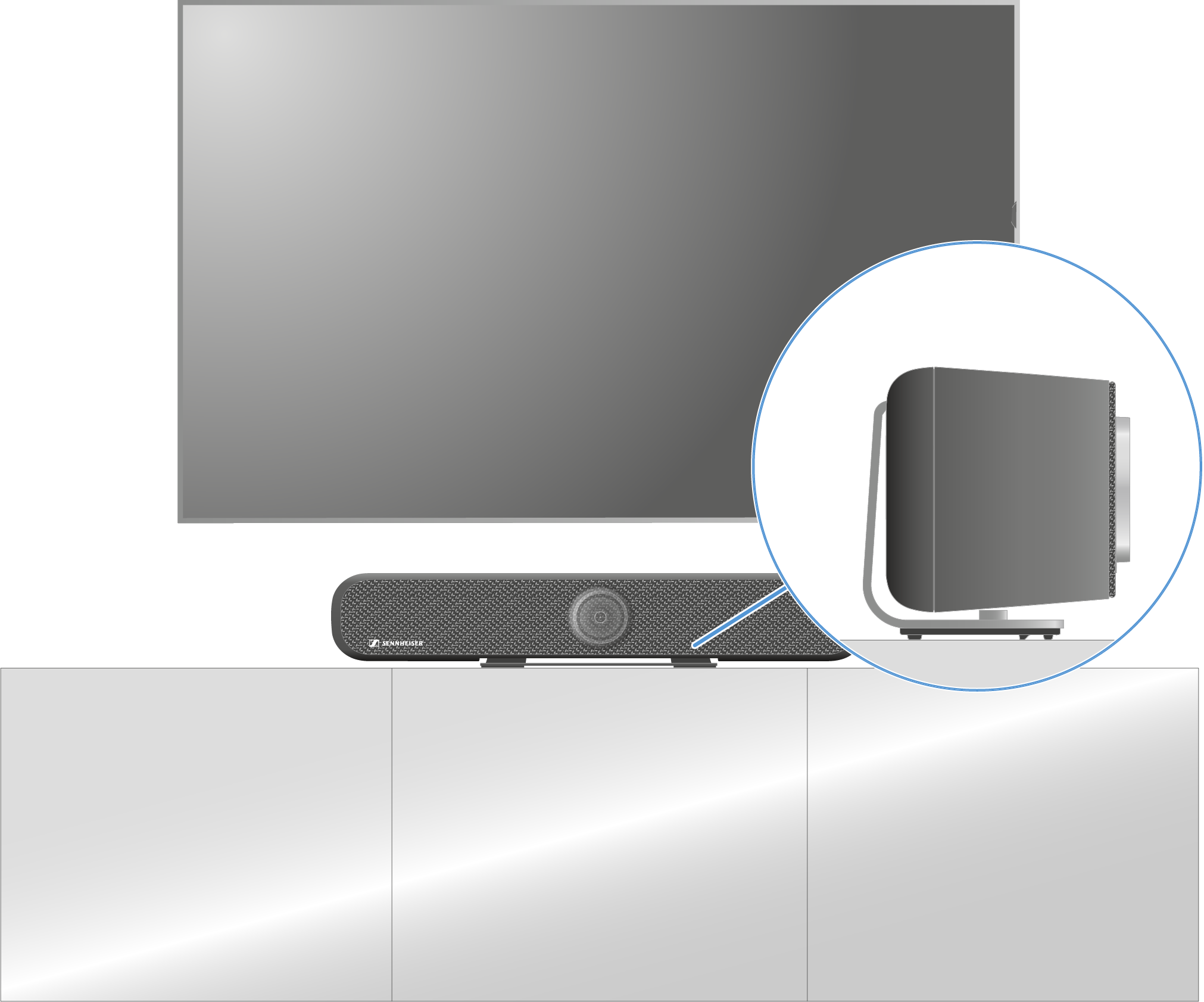

Mounting the TC Bar on a table

The mounting kit included in the delivery can be used to mount the TC Bar to a table or sideboard.

Note:

The bracket required for mounting is included in the scope of delivery.

Place the TC Bar on a soft surface with its bottom facing up.
Place the bracket on the recess on the bottom intended for this purpose and screw the Phillips screws included in the delivery into the thread of the TC Bar.
Place the TC Bar so its rubber feet are on the table and align it according to the instructions.
Pass the cable properly through the cable guide rail.

The TC Bar was successfully mounted on the table.
