Mounting the TC Bar on the wall

The mounting kit included in the delivery can be used to mount the TC Bar to the wall above or below the screen.

Note:

The bracket required for mounting is included in the scope of delivery. The screws and dowels required for mounting are not included in the scope of delivery.

Scope of delivery


A	Mounting bracket
B	Drilling template
C	Two fastening screws

To mount the TC Bar on the wall:

Remove the enclosed cardboard drilling template from the packaging.

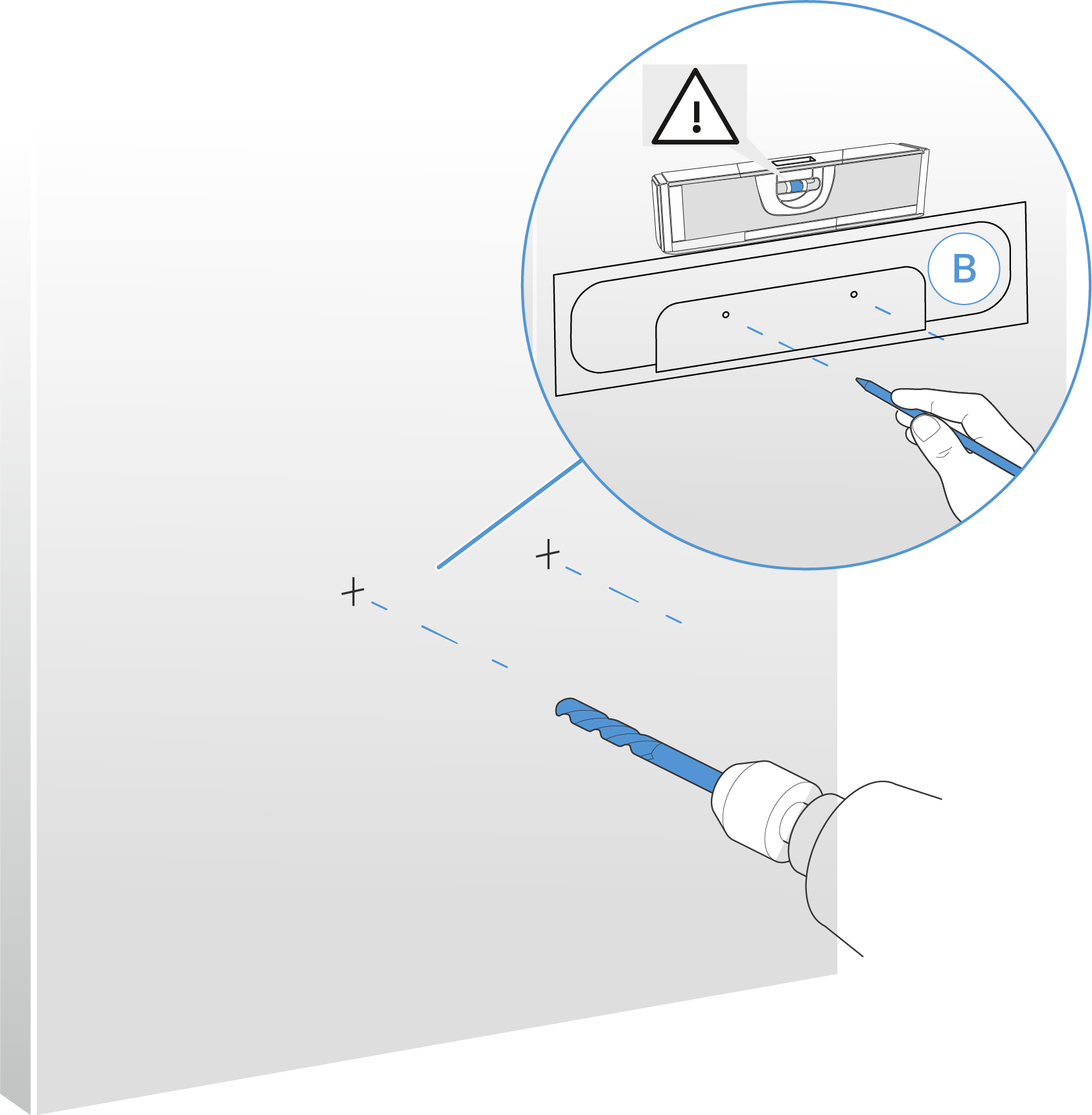

Place the drilling template on the desired position on the wall and align it using a level.
Use a sharp pencil or a flat head screwdriver to puncture through the drilling template at the drilling markings and mark the drilling points on the wall in the process.
Note:
To securely fasten the TC Bar to the wall, we recommend using a drill with a diameter of at least 8 mm and the appropriate dowels.
Drill the holes at the marked points and, depending on the material the wall is made of, insert appropriate dowels into the wall.
Tighten the bracket with two screws.
Place the TC Bar on the mounted bracket from above and attach the TC Bar using the screws included in the delivery.
Tilt the TC Bar forward slightly and install all connection cables.
Pass the cable properly through the cable guide rail.
Position the TC Bar upright again and place it at the appropriate angle.

The TC Bar was successfully mounted on the wall.
