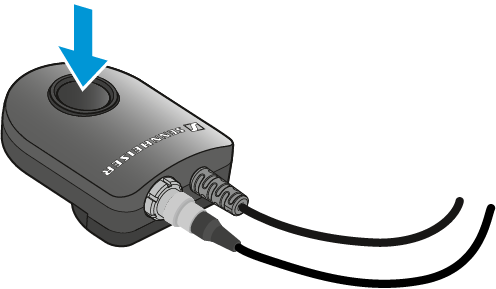

Operating the SEK with the COM Button

The COM Button can be programmed with different functions, like mute or push to talk.

You can set the function of the COM button in the WebUI (see Setting the command mode) for each selected audio output channel on the Base Station.

Momentary
Latching
