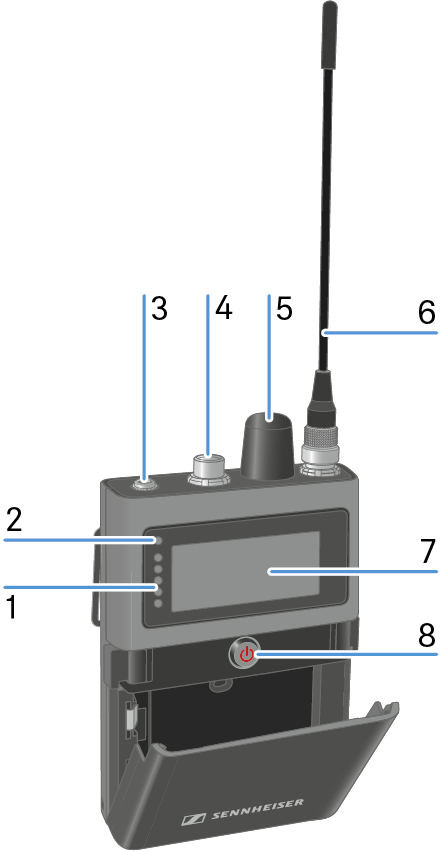

Product overview

1 LEDs: see Meaning of the LEDs
2 Status LED: see Meaning of the LEDs
3 Phones 3.5 mm jack: see To use the Phones jack
4 Microphone / Instrument input: see Connecting a microphone / instrument; see Connecting the COM Button
5 Rotary encoder: with push function; see Information on the display
6 Antenna: see Mounting the antenna
7 Display: see Information on the display
8 ON/OFF Button: see Switching the SEK on and off
