Operating the SEK with the COM Button

The COM Button can be programmed with different functions, like mute or push to talk.

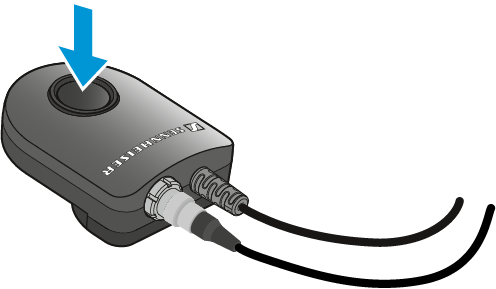

You can press the command button to control the audio signal routing of the XLR-3 sockets and the Dante socket on the Base Station.

The following functions are available:

Mute
Push to talk
Push to mute
...

You can set the function of the Command button in WebUI or LinkDesk (see ).
