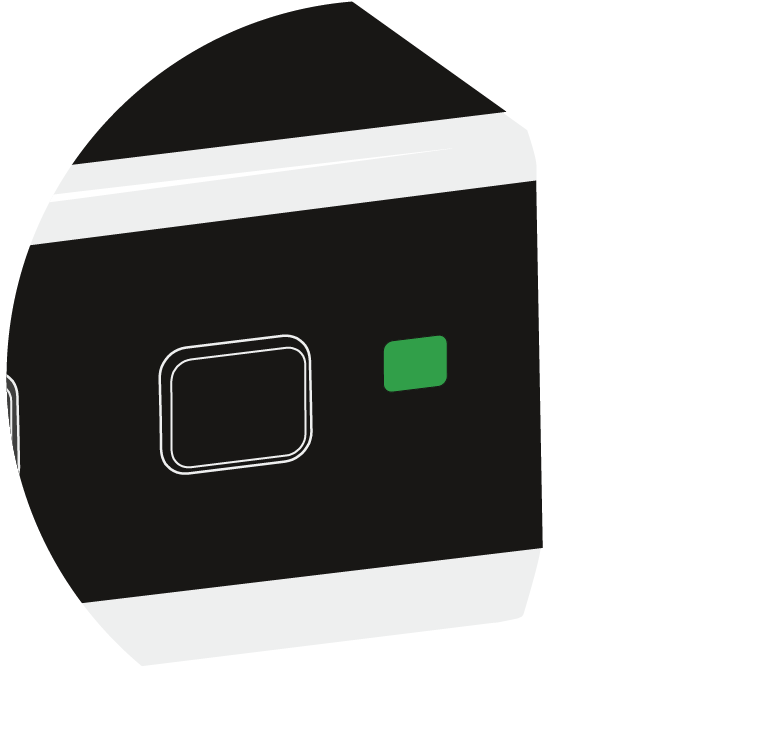

lights up green
|
A radio link to the transmitter is established. The accupack of the received transmitter is sufficiently charged. |
flashes green
|
The PAIR button has been short-pressed. Paired devices are being identified. |
flashes alternately green and red
|
The PAIR button has been long-pressed. The receiver establishes a radio link to a
transmitter whose PAIR button has also been long-pressed. |

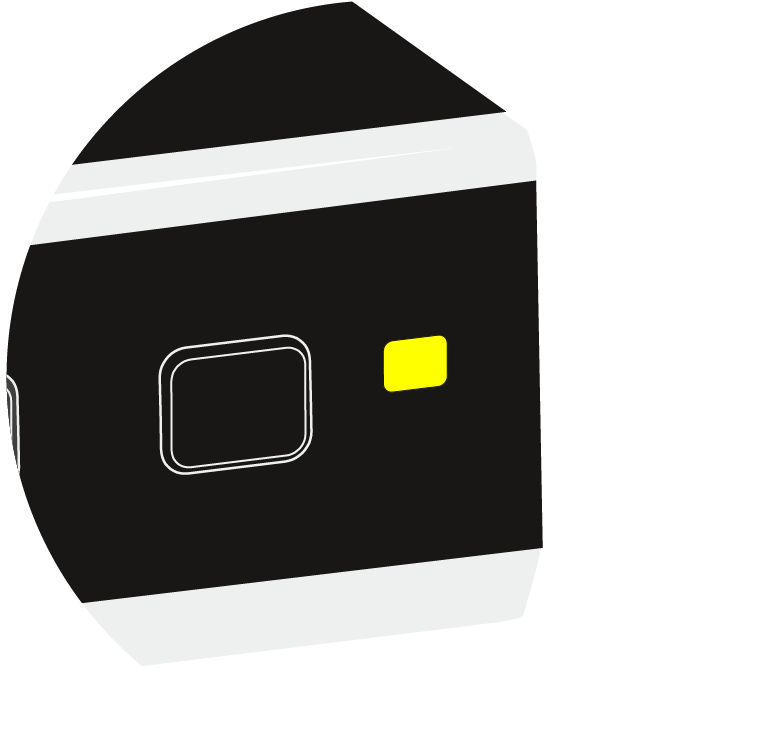

lights up yellow
|
The received transmitter has been muted with the MUTE switch. In addition, Muted is displayed on the display panel. |

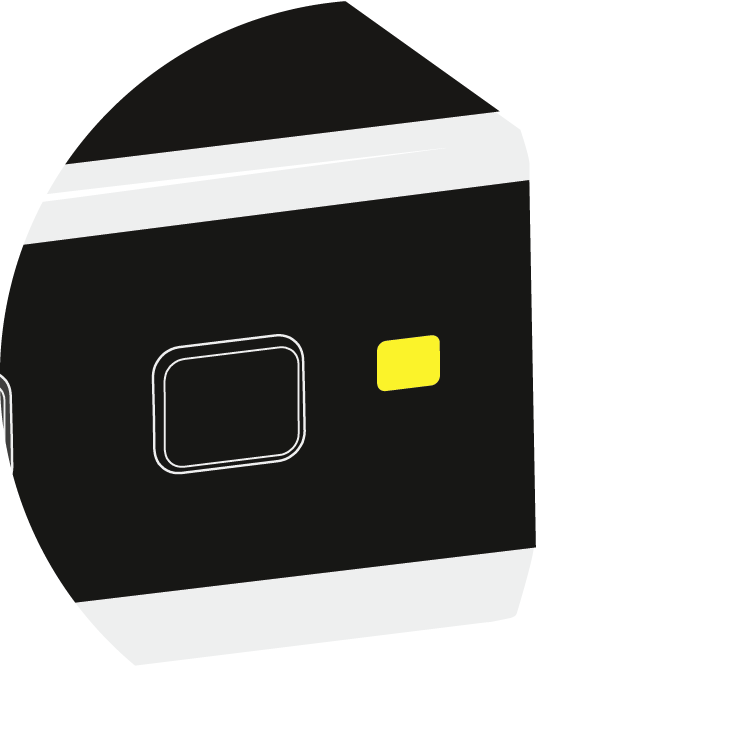

flashes yellow
|
The firmware is being updated. |
lights up red
|
No radio link to a transmitter. In addition, the background of the
display panel changes back and forth between light and dark and No
Link appears on the display panel. |
flashes red
|
The accupack capacity of the received transmitter is only sufficient for max. 30 minutes of operation. |
