This manual provides detailed information about installation and usage of the individual products in the SpeechLine Digital Wireless series.
The SL Boundary 114-S DW
Muting the boundary microphone

Muting the boundary microphone

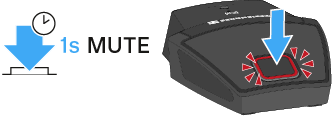

To mute the boundary microphone:

If the boundary microphone is on, press the ON/OFF button for 1 second.

The button lights up red.

In Push to talk mode, the audio signal is muted by default and is only activated while the ON/OFF button is pressed.
In Push to mute mode, the audio signal is active by default and is only muted while the ON/OFF button is pressed.
You can set the mute mode in the menu of the SL Rack Receiver DW or using the Sennheiser Control Cockpit.
