MKH 8070

Specifications

Pick-up pattern

  • Lobar

Frequency response

  • 45 - 20,000 Hz

Sensitivity

  • -19 dBV/Pa (112 mV/Pa)

Sound pressure level limit

  • 124 dB SPL

Equivalent noise level

  • A-weighted: 8 dB(A)
  • CCIR-weighted: 21 dB

Rated impedance

  • 25 Ω

Min. terminating impedance

  • 2 kΩ

Phantom powering

  • 48 V ± 4 V (P48, IEC 61938)

Power consumption

  • 3.3 mA

Diameter

  • approx. 19 mm

Length

  • approx. 432 mm
  • approx. 465 mm with XLR-Modul MZX 8000

Weight

  • approx. 300 g
  • approx. 332 g with XLR-Modul MZX 8000

Temperature range

  • -10 °C to +60 °C

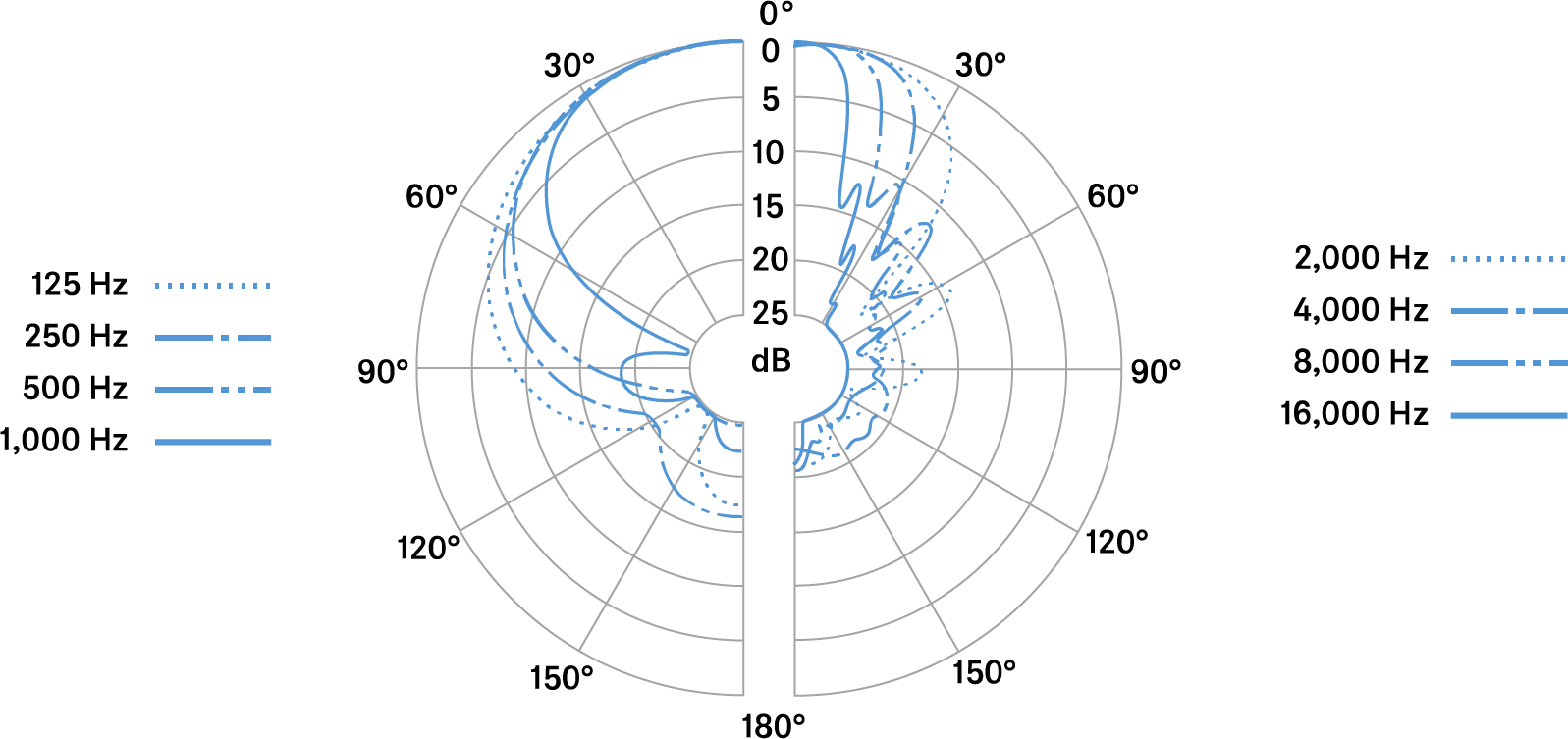

Polar pattern

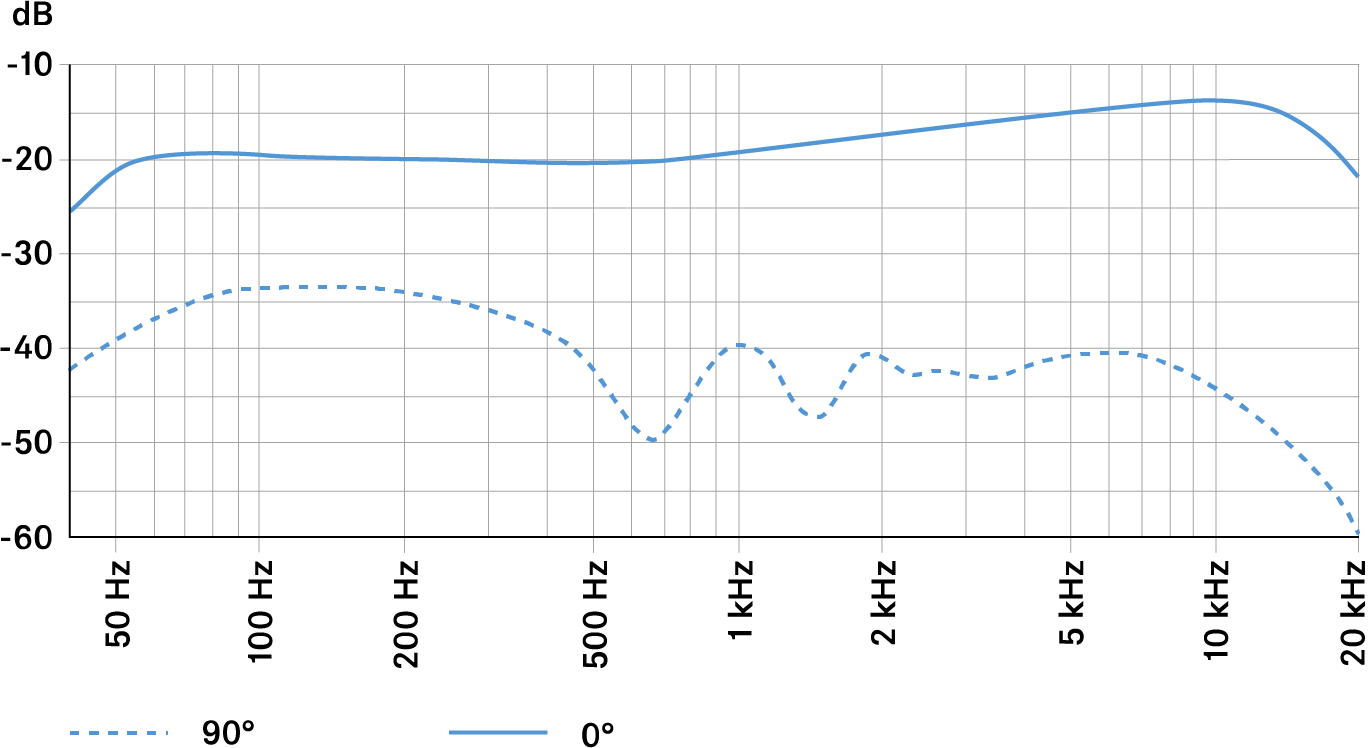

Frequency response
