MKH 8060

Specifications

Pick-up pattern

  • Super-cardioid / Lobar

Frequency response

  • 50 - 25,000 Hz

Sensitivity

  • -24 dBV/Pa (63 mV/Pa)

Sound pressure level limit

  • 129 dB SPL

Equivalent noise level

  • A-weighted: 11 dB(A)
  • CCIR-weighted: 23 dB

Rated impedance

  • 25 Ω

Min. terminating impedance

  • 2 kΩ

Phantom powering

  • 48 V ± 4 V (P48, IEC 61938)

Power consumption

  • 3.3 mA

Diameter

  • approx. 19 mm

Length

  • approx. 145 mm
  • approx. 178 mm with XLR-Modul MZX 8000

Weight

  • approx. 80 g
  • approx. 112 g with XLR-Modul MZX 8000

Temperature range

  • -10 °C to +60 °C

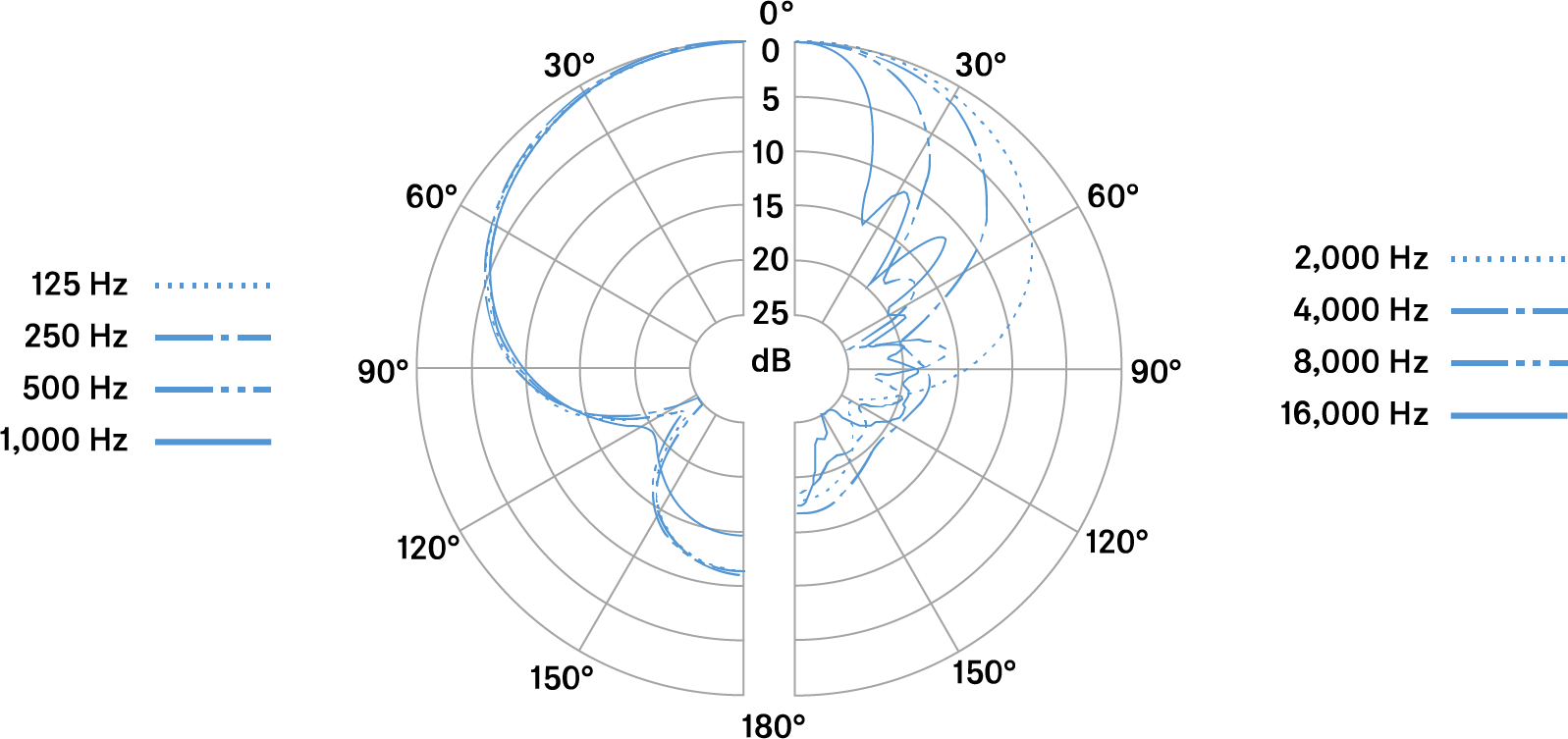

Polar pattern

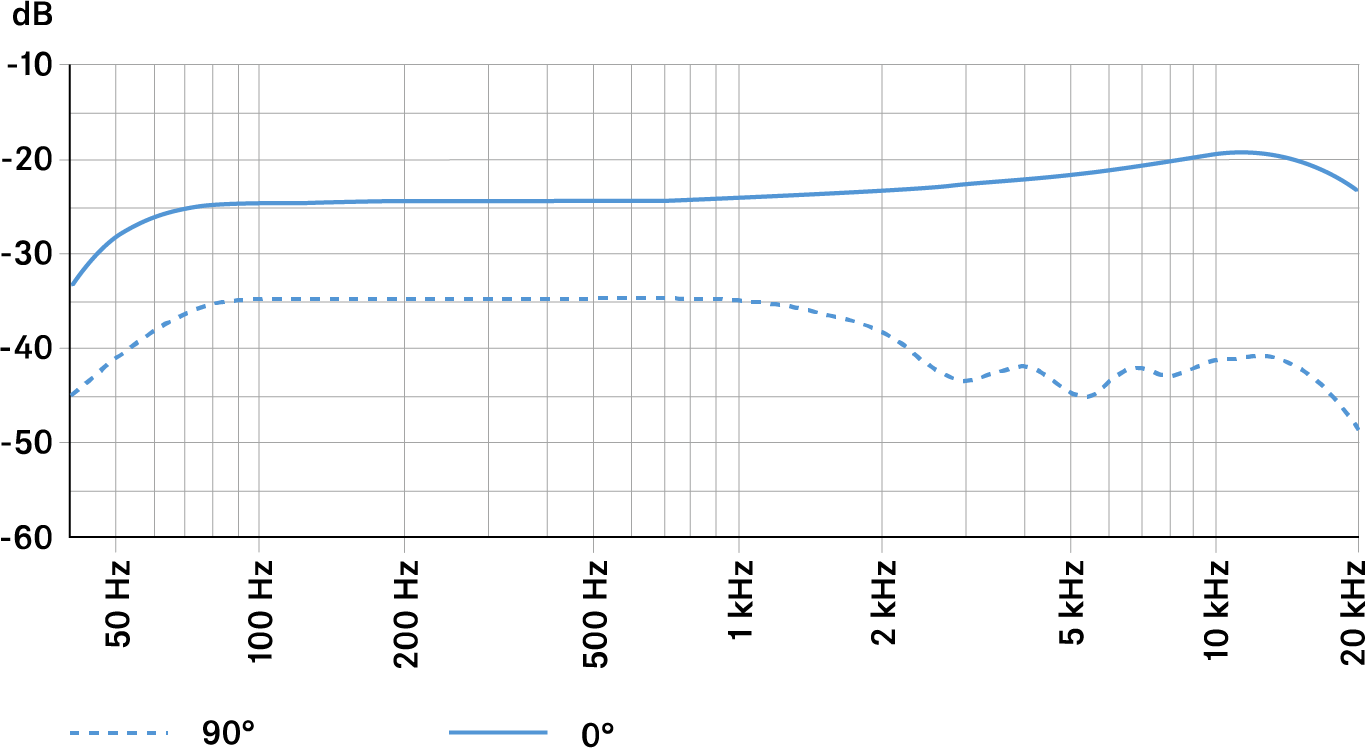

Frequency response
