MKH 8040

Specifications

Pick-up pattern

• Cardioid

Frequency response

• 30 - 50,000 Hz

Sensitivity

• -34 dBV/Pa (20 mV/Pa) without MZF 8000 II filter module
• -44 dBV/Pa (6.3 mV/Pa) with MZF 8000 II filter module

Sound pressure level limit

• 142 dB SPL without MZF 8000 II filter module
• 137 dB SPL with MZF 8000 II filter module

Equivalent noise level

• A-weighted: 13 dB(A)
• CCIR-weighted: 22 dB

Phantom powering

• 48 V ± 4 V (P48, IEC 61938)

Power consumption

• 3.3 mA

Diameter

• approx. 19 mm

Length

• approx. 41 mm
• approx. 75 mm with XLR-Modul MZX 8000

Weight

• approx. 25 g
• approx. 55 g with XLR-Modul MZX 8000

Temperature range

• -10 °C to +60 °C

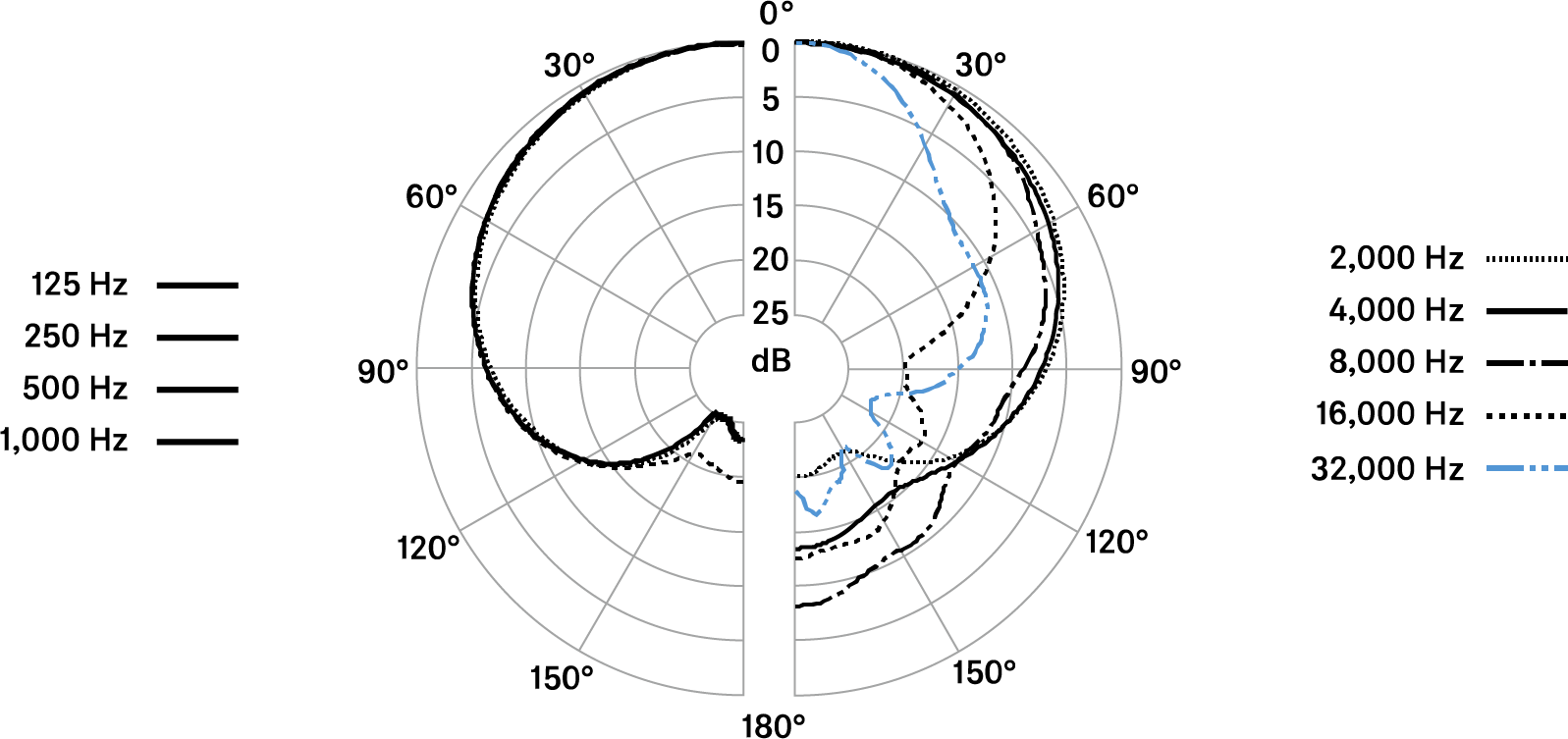

Polar pattern

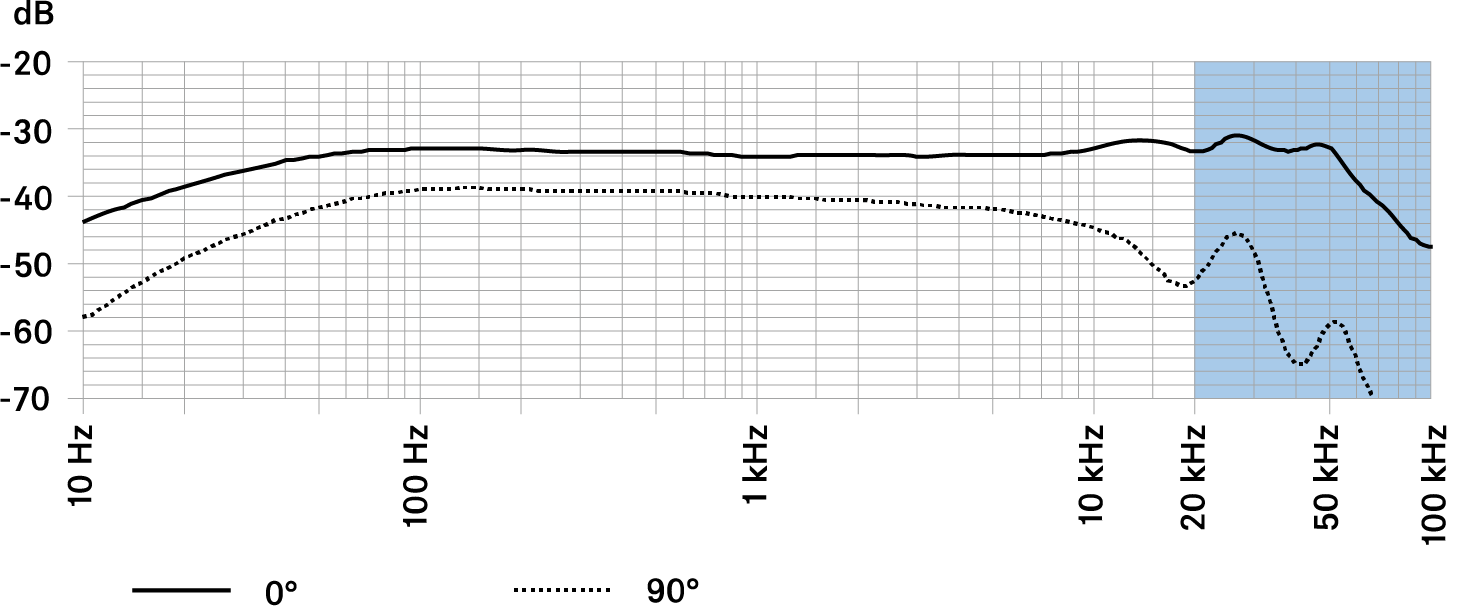

Frequency response
