MKH 8018
Specifications
Pick-up pattern
- stereo shotgun
Frequency response
- 40 Hz - 20,000 Hz
Sensitivity
- M-Channel: 56 mV/Pa; -25 dB ref (1 V/Pa)
- S-Channel: 25 mV/Pa; -32 dB ref (1 V/Pa)
- XY Narrow: 50 mV/Pa; -26 dB ref (1 V/Pa)
- XY Wide: 32 mV/Pa; -30 dB ref (1 V/Pa)
Equivalent noise level
- M-Channel: 12 dB A-weighted; 24 dB CCIR-weighted
- S-Channel: 14,5 dB A-weighted; 24 dB CCIR-weighted
- XY Narrow: 12 dB A-weighted; 24 dB CCIR-weighted
- XY Wide: 13 dB A-weighted; 25 dB CCIR-weighted
Nominal impedance at 1 kHz
- 430 Ω
Min. load impedance
- 4.7 kΩ
Low-cut filter (switchable)
- -3 dB @ 70 Hz
Attenuation (switchable)
- -10 dB
Power supply
- P48 (IEC 61938)
Current consumption
- 2x 3.4 mA
Max. SPL
- > 126 dB
Connector
- XLR-5M
Diameter
- 22 mm
Length
- 230 mm
Weight
- 115 g
Temperature range
- Operating: -10 °C bis +60 °C
- Storage: -20 °C bis 70 °C
Relative humidity
- 5 to 95%, non condensing
Polar pattern

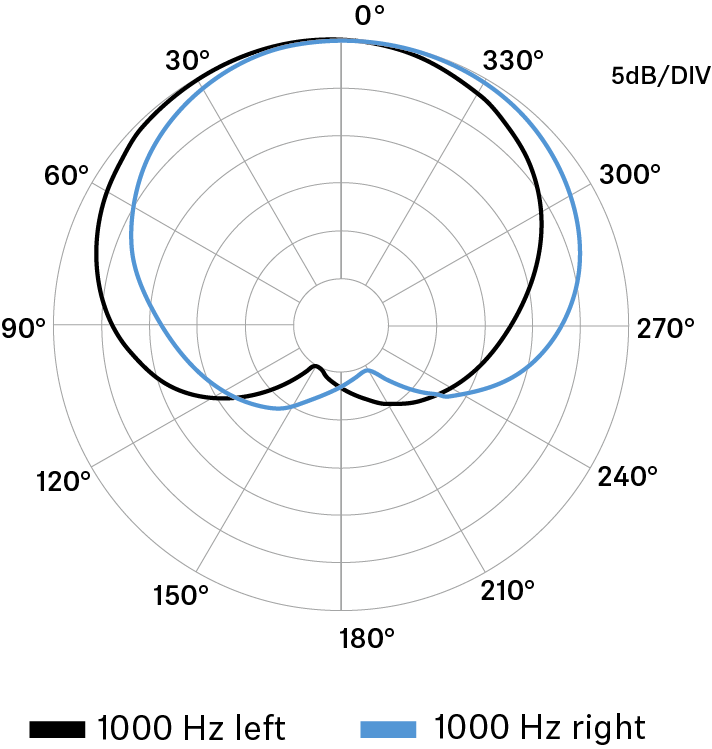

XY narrow

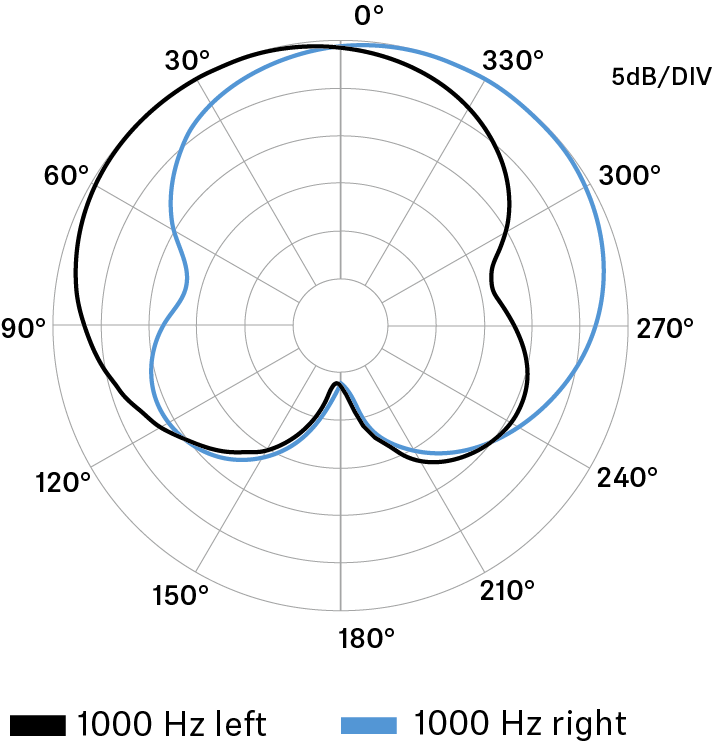

XY wide

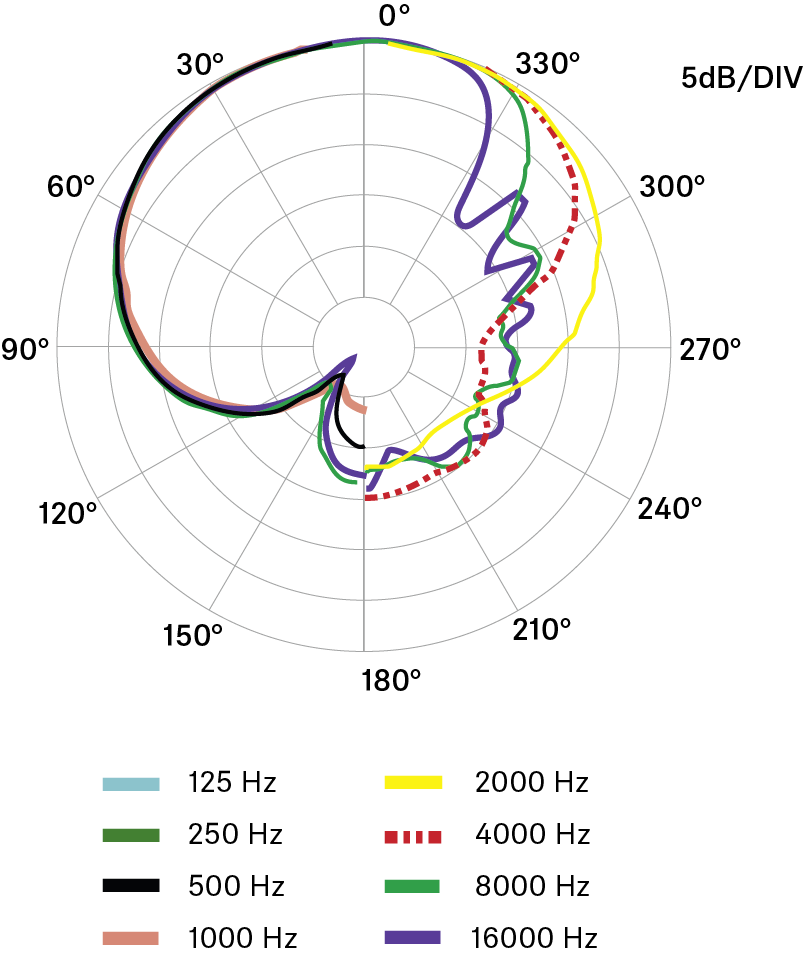

Mid / M-Channel

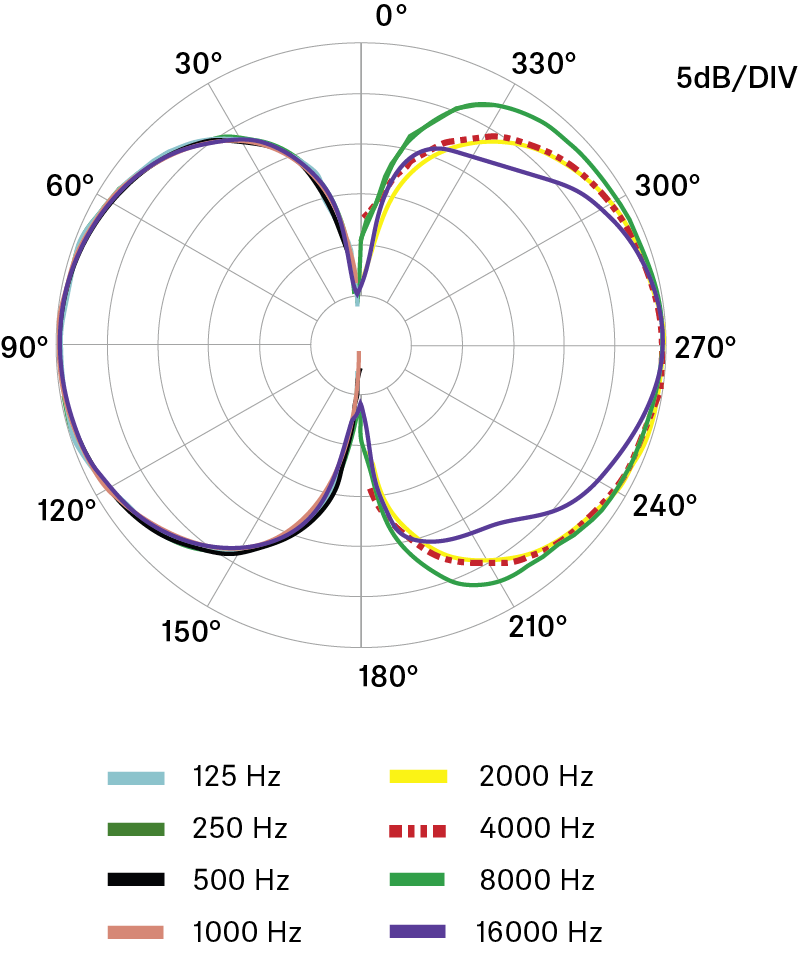

Side / S-Channel
Frequency response

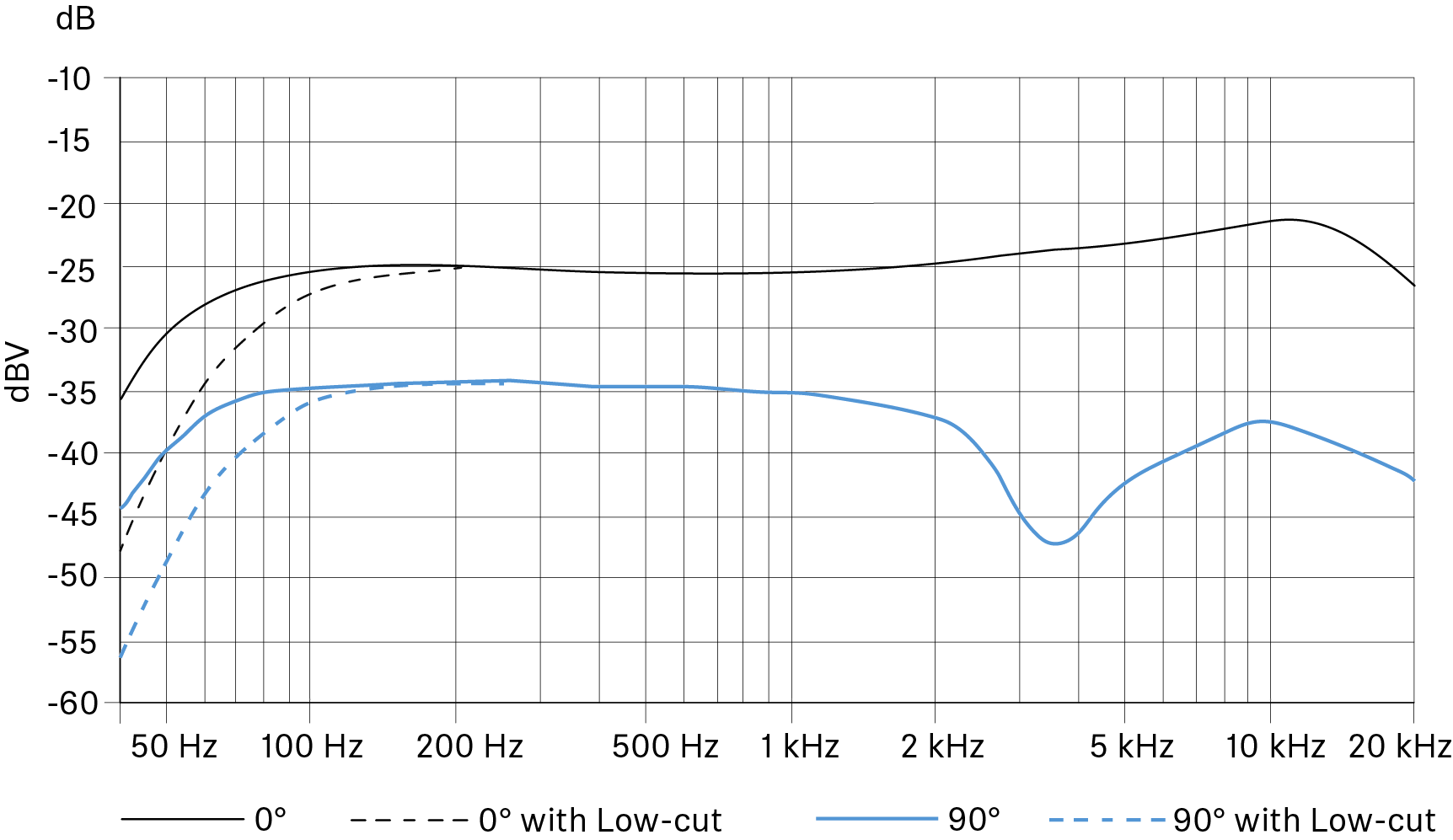

Mid / M-Channel

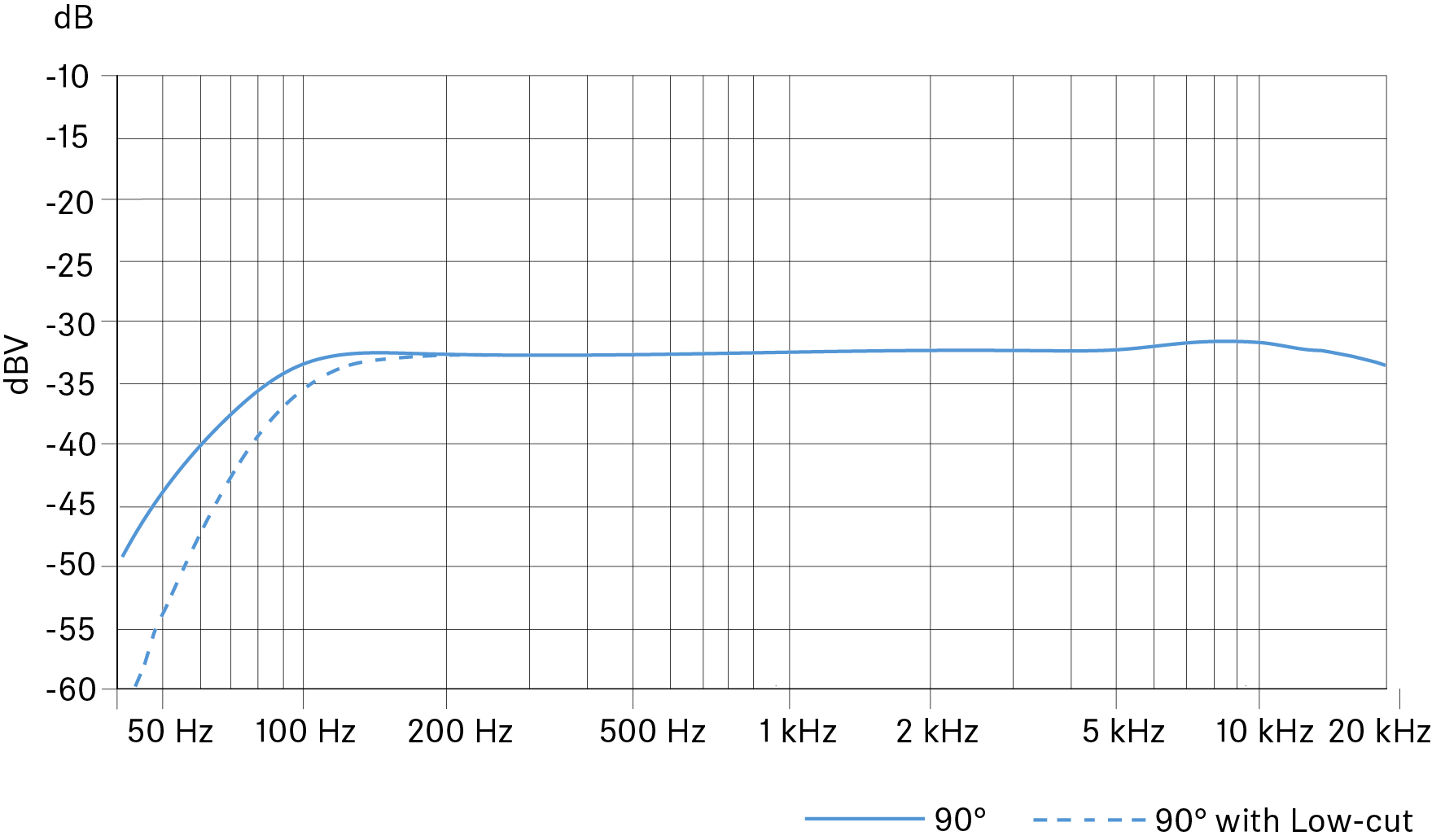

Side / S-Channel
